Yes—splicing Cat 5 can bring a broken run back online, but it adds loss and crosstalk and isn’t standards-compliant. For a reliable, serviceable fix, use rated inline 110/IDC splices or two keystones with a coupler, keep pair twists to the terminals, and test the link; replacing the damaged segment remains best practice.

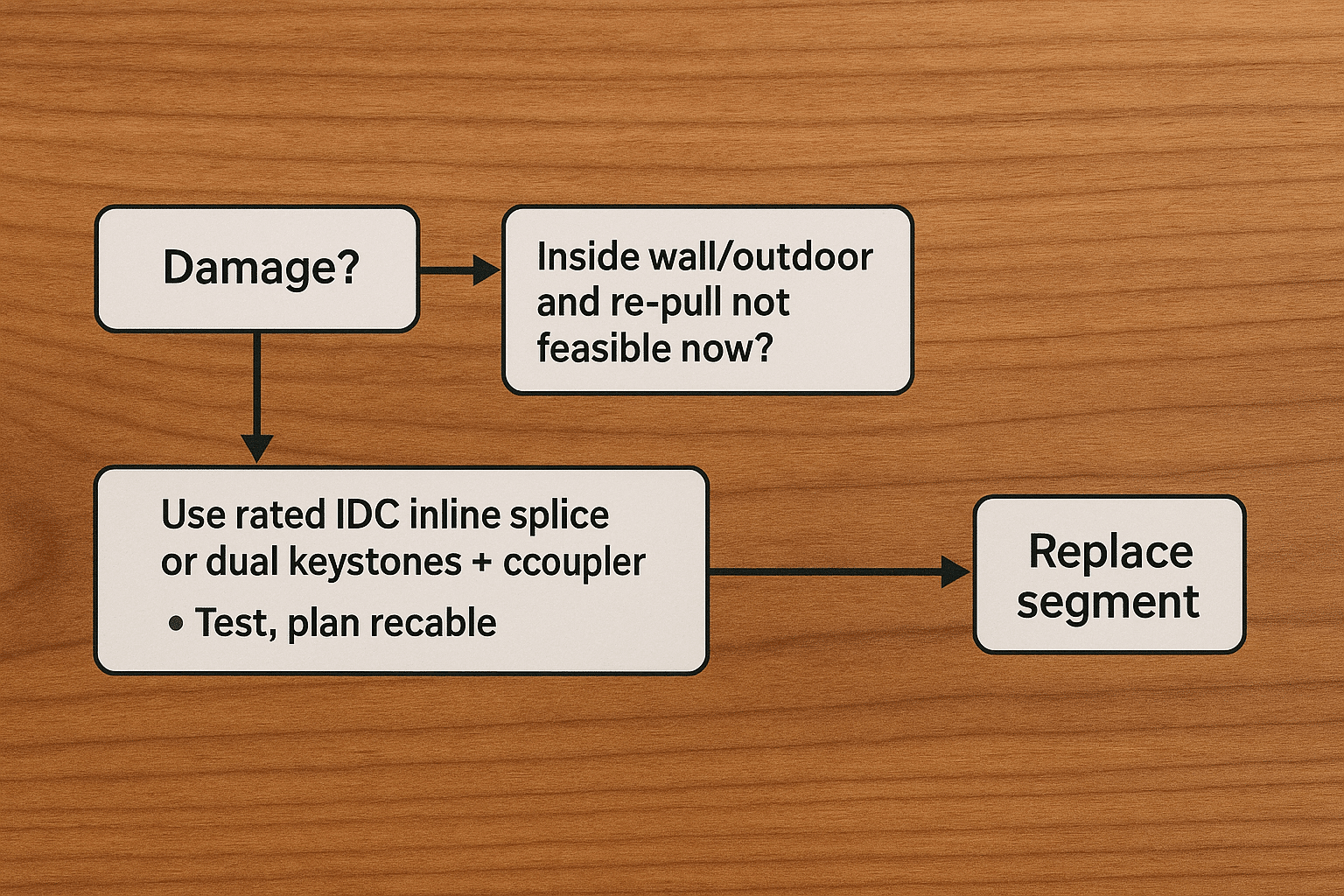

When I’ll splice (controlled, short-term or constrained work):
Outdoor nicks that need to come back up fast—done inside a weatherproof enclosure, then tested and scheduled for a proper recable.
When I won’t splice (or I splice only as a bridge to recabling):
Any repair using hand-twist, solder-and-tape, or unrated bits. These tricks are common in DIY videos but they’re not standards-compliant and tend to fail under load or time.
From field repairs to clean retrofit jobs, I stick to rated parts and repeatable techniques. Here’s how the common approaches stack up—and when I’d reach for each one.
Hand-twist / solder-and-tape (not recommended) I’ve seen this “quick fix” work for a day and fail under load the week after. Untwisted pairs and cold solder joints invite loss and crosstalk, and the joint isn’t standards-compliant. I only use this as a temporary bridge before a proper repair or re-pull.
110/IDC inline splice (recommended) This uses a rated inline IDC/110 module so each pair lands on its own terminals. Keep the twist right to the blades and close the housing—done well, attenuation is controlled and the joint is serviceable. It’s my first choice for in-wall or ceiling repairs.
Dual keystones + coupler (recommended) Two keystones with a straight inline coupler make a neat, swappable repair. It adds two ports and needs a little space, but it’s easy to re-terminate later and plays nicely near patch areas.

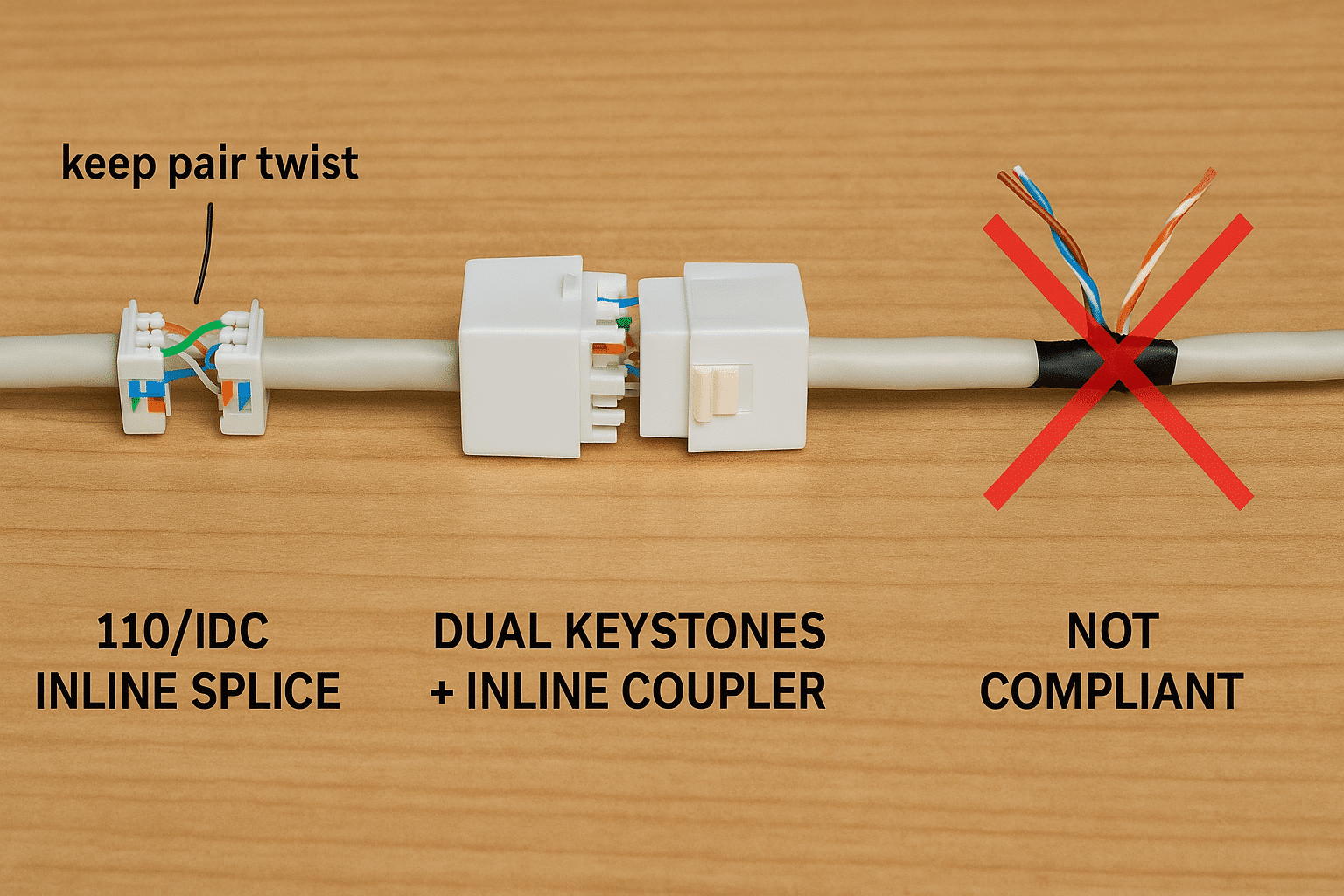

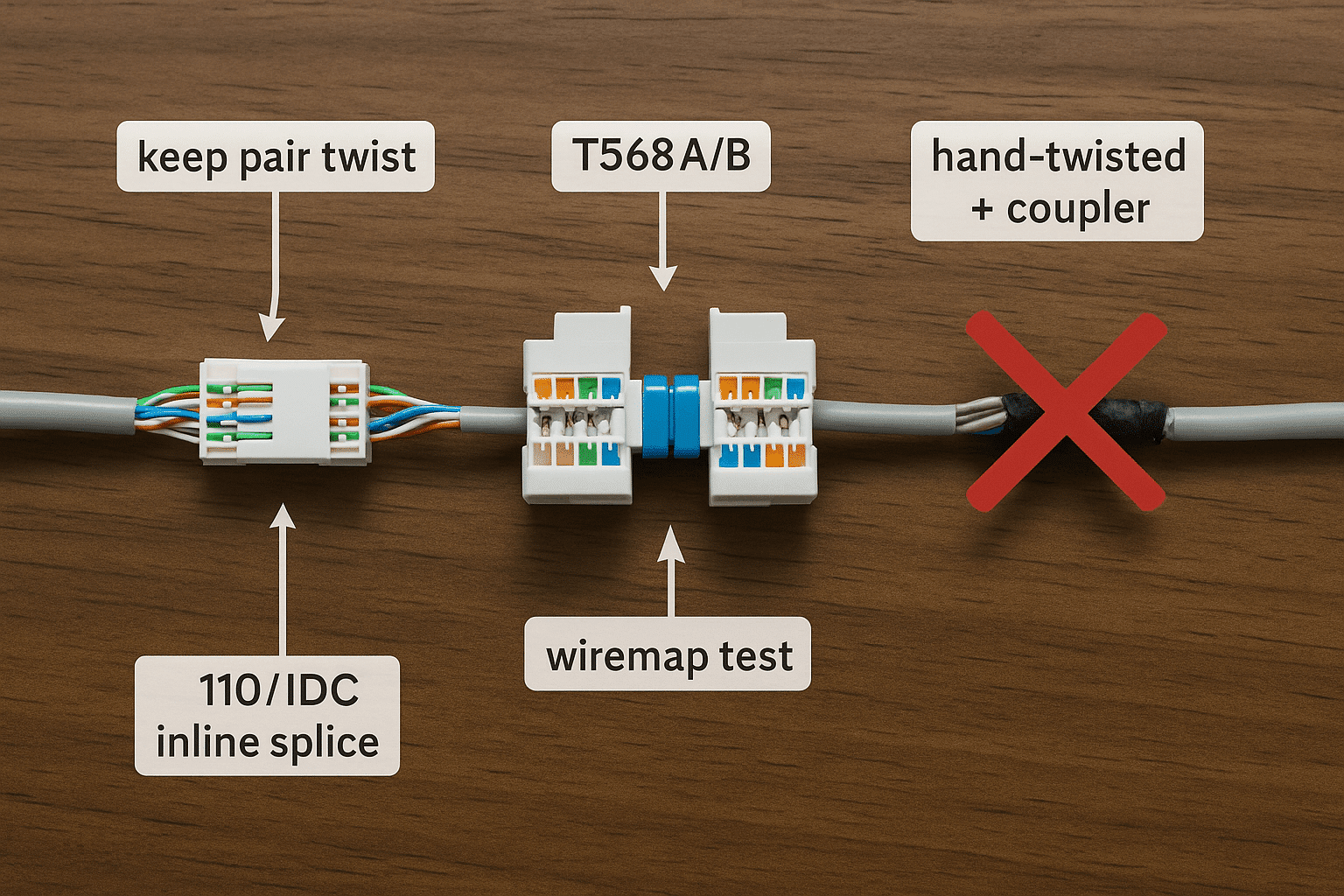

Splicing Methods Compared

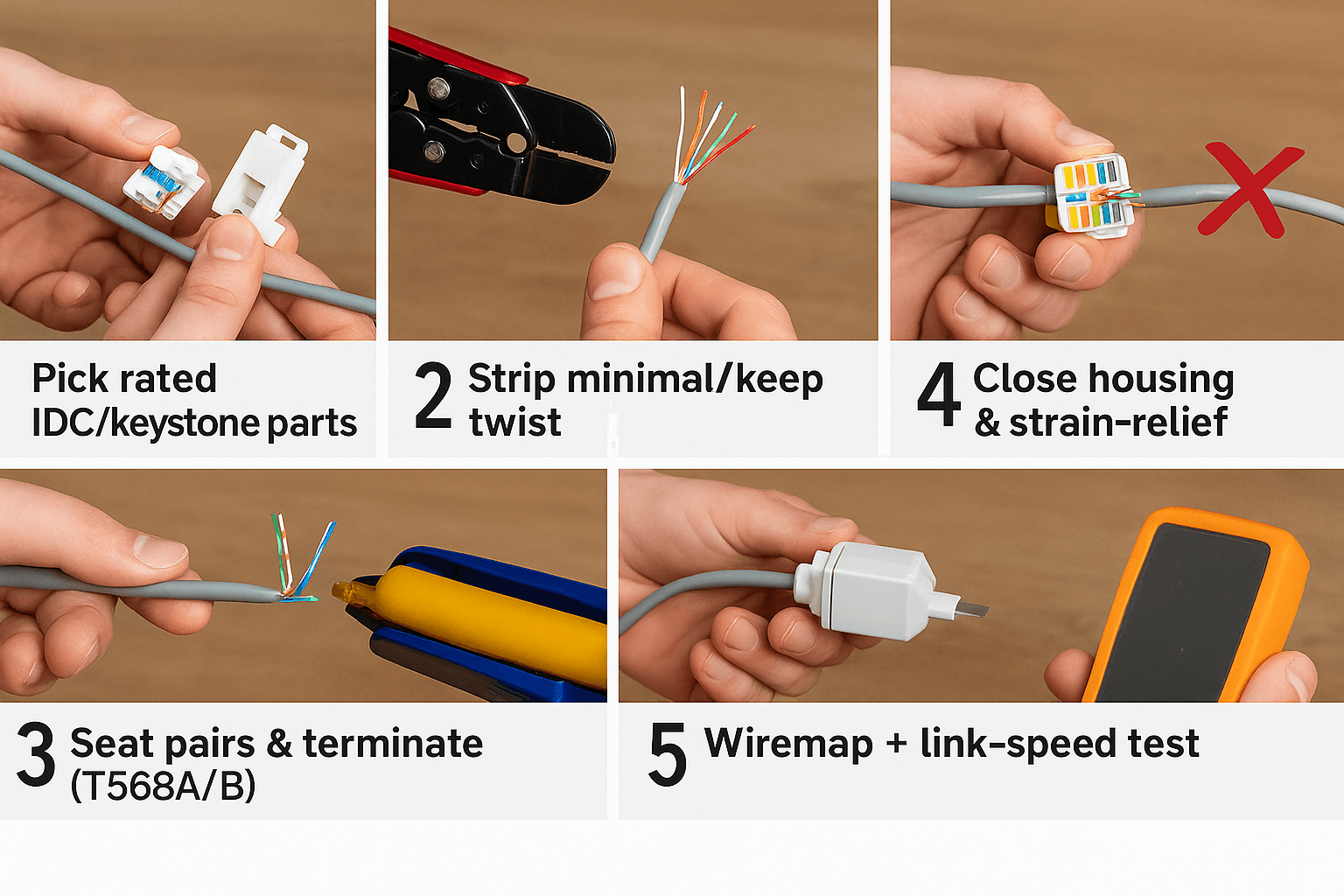

Step 1 — Pick rated parts & prep For permanent-grade repairs I use a rated IDC/110 inline splice or two keystones with a straight coupler. Confirm T568A/B for both ends, match the hardware to your cable (pair layout, OD), and lay out tools before you cut.
Step 2 — Strip minimally, keep the twist I remove the smallest practical jacket length and keep each pair twisted to the terminal. Losing twist is the fastest way to add crosstalk and headaches later.
Step 3 — Seat pairs cleanly & terminate I seat pairs into the load-bar/keystone in exact order (T568A or T568B) and make sure conductors sit fully before I punch/crimp. The goal is straight entries—no splay, no forced bends—so the contact bite is even.
Step 4 — Close up & strain-relieve Close the splice housing or jack, confirm the jacket is clamped (not just the conductors), and respect bend radius. This is what keeps the repair stable over time.
Step 5 — Wiremap I run a quick wiremap to catch opens, shorts, split pairs, or mis-orders before any traffic hits the link. If it fails, I re-terminate immediately.
Step 6 — Link-speed spot test I plug into a known-good switch/NIC and verify the link negotiates as expected (100M/1G, depending on the channel). If I see jitter or down-negotiation, I redo the terminations rather than chasing ghosts.
Step 7 — Label & plan the recable (when appropriate) For wall/ceiling or outdoor fixes, I label the location and schedule a segment replacement when conditions allow. A splice can work; a fresh pull is what lasts.
In my projects, a splice is something I verify, not assume. It can work, but “works” ≠ “compliant or long-lived.” Expect added attenuation and potential crosstalk; that’s why I always test and document splices, and plan a recable when the site allows.

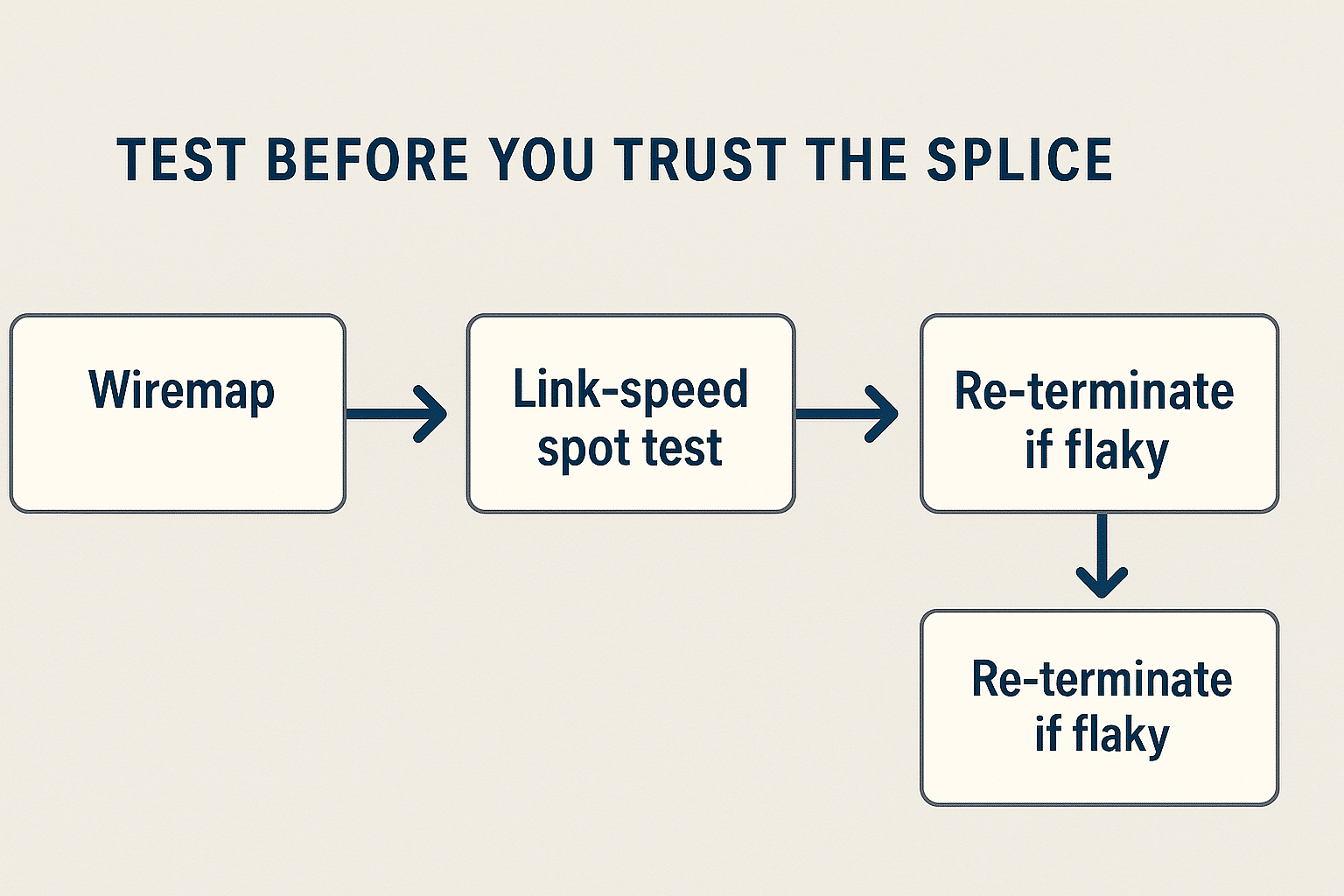

How I validate a spliced link
Testing & Risk Checklist

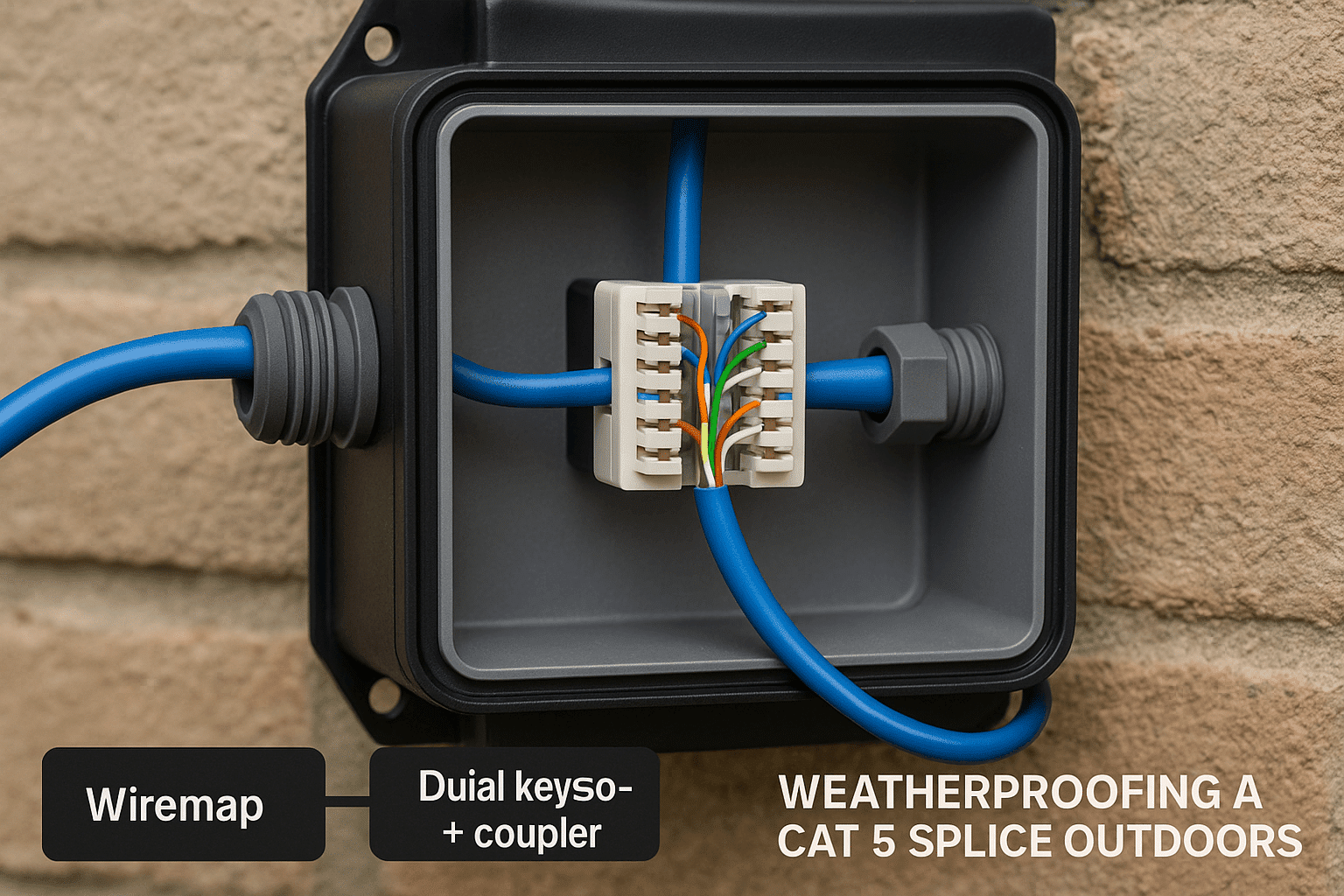

When I must splice outdoors, I treat it like a small enclosure project: IP-rated waterproof box, grommets/strain-relief, UV-resistant housing, and a drip loop. Rated IDC or keystone parts go inside the enclosure; once service is restored and stable, I schedule a proper pull.
Is it OK to splice an Ethernet cable? Yes—as a controlled repair. I use rated IDC inline splices or dual keystones with a coupler, keep pair twists to the terminals, and test the link. Hand-twist or solder-and-tape joints add loss/crosstalk and aren’t standards-compliant, so I treat them as temporary at best.
What’s the best permanent way to splice Cat 5? For permanent-grade repairs, I prefer a rated IDC/110 inline splice or two keystones + a straight coupler. Both terminate pairs properly and are serviceable later. I still run wiremap and a link-speed check, then label the location for future recable. Will a splice reduce speed or break gigabit?
It can. A splice adds insertion loss and can worsen crosstalk if workmanship slips. I verify with a quick link-speed test and re-terminate any flaky joints; “it passes traffic” doesn’t guarantee compliance or long-term stability.
How many splices are acceptable in one run? As few as possible. Every joint is another failure point and potential source of loss. In practice, I limit to one controlled splice to restore service and plan a recable; multiple splices stack risk and troubleshooting pain.
Can a spliced run carry PoE safely? I’ve run PoE through rated IDC/keystone repairs without trouble, but I avoid unrated hand splices that can loosen, heat, or oxidize. Use rated parts, ensure firm terminations, and check under load; if anything gets warm or unstable, re-terminate or replace the segment.
How do I splice Cat 5 outdoors? Use a waterproof junction box, proper grommets/strain-relief, and UV-resistant housing. Keep pair twists to the terminals, terminate T568A/B, and test. Once service is steady, schedule a proper cable pull to remove the splice when feasible.
My rule of thumb: splice to restore, recable to endure. With rated parts, clean terminations, and a quick test routine, you can get back online fast—then plan the permanent fix when conditions allow. If you’re building a parts list, start with rated IDC splices or keystones and the right tester.
