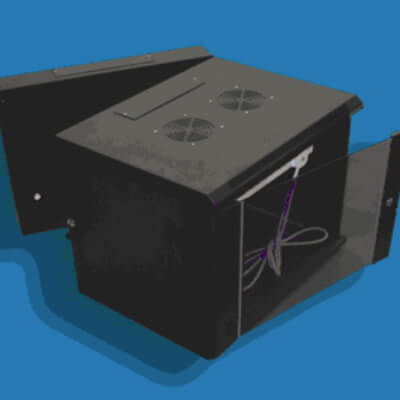

Wall Cabinet Home / Network Rack Cabinet / Wall Cabinet Network Rack Cabinet Wall Cabinet Wall Cabinet is part of OTSCABLE's current network rack cabinet range for distributors, installers and project buyers. Review the published product information below, then confirm the required configuration, quantity, packaging and destination before quotation. Comply with ANSI/EIA, RS-310-D; IEC297-2; DIN41491: PART1; DIN41494: PART7; GB/T3047.2-92 standard, compatible with 19″ international standard, metric system and ETSI standard Reliable structure, static loading capacity: 60KG Quick and easy wall mounted, 19″ standard instalation inside Double section structure, the open angle between the two sections is 120 degrees, the open angle for front door is over 180 degree 120mm size fan could be installed at top of cabinet Request a Quote → Specifications Wall Cabinet Specifications Review the specification sections and product information currently published for this product. Surface Treatment Standard Specification And Technical Parameter Standard Accessory List Degreasing, pickling, phosphating, powder coating.Material and Thickness: SPCC cold rolled SteelMounting profile: 2.0mmOthers: 1.20mm to 1.50mmColor:RAL9004(black) RAL7044(grey)RAL7039(Dark Grey) Width Depth Height U Parking size CBM 600 550 278 4 665*615*315 0.1288 600 665*665*315 0.1393 600 550 367 6 665*615*405 0.1656 600 665*665*405 0.1791 600 550 500 9 665*615*535 0.2188 600 665*665*535 0.2366 600 550 650 12 665*615*685 0.2801 600 665*665*585 0.3029 600 550 775 15 665*615*810 0.3313 600 665*665*810 0.3582 600 550 908 18 665*615*945 0.3865 600 665*665*945 0.4179 550 1086 22 665*615*1122 0.4589 600 665*665*1122 0.4962 td{border:1px solid #eeeeee;} NO. Name Qty Nos Materials Remark 1 Frame 1 pcs SPCCT=1.2 2 Front door 1 pcs —- Blue Decorative Strip For Front Glass door 3 Lock(CXSB-103-25) 2 pcs —- Small Round Lock, H=25mm 4 Back Side 1 pcs SPCCT=1.2 Small Round Lock, H=16mm 5 Side panel 2 pcs SPCCT=1.2 6 Quick Open Latch 4 pcs —- 7 Mounting Panel 1 pcs SPCCT=1.2 8 Fan Cutout Cover 2 pcs SPCCT=1.2 9 Cover 3 pcs SPCCT=1.2 10 Mounting Profile 4 pcs SPCCT=2.0 11 L Rail 1/2 pcs SPCCT=1.5 Set below 12U 12 Cage nut and Screw M6 10/20 pcs —- 9 Pieces below 12U 13 Cage nut and Screw M6*12U 10/20 pcs —- 10 Pieces below 12U 14 Bolt M8*70 2 pcs —- Optional accessories td{border:1px solid #eeeeee;} Applications Where Wall Cabinet Fits Match the cabinet format and available space to the equipment and distribution layout. Final configuration should follow the project specification. Application 01 Data & Equipment Rooms Organize switches, patch panels, fiber hardware and supporting equipment. Equipment RoomRack Application 02 Telecom Rooms Coordinate distribution hardware and cable routing in a managed enclosure. TelecomDistribution Application 03 Wall-Mount Locations Use compact enclosures where floor space and equipment count are limited. Wall MountEdge Site Application 04 Project Integration Confirm dimensions, mounting, cable entry and accessory requirements before supply. IntegrationRequirement Review Related Products Compare Related Network Rack Cabinet Options Network Cabinets Cat5e FTP Cable Cat5e SFTP Cable Cat5e UTP Cable Request A Quote Write to Us Share cable type, category, shielding, length, quantity, packaging and destination details. OTSCABLE can review your project and recommend suitable product options. Email[email protected] Phone+86 (0) 755-23769401 Office Address708 Fuben Building, Guanlan Avenue, Longhua New District, Shenzhen, Guangdong, China Request a Product Quote Tell us what you need. Fields marked * are required. Name * Email * Phone Company Message * Δ
Application 01 Data & Equipment Rooms Organize switches, patch panels, fiber hardware and supporting equipment. Equipment RoomRack
Application 02 Telecom Rooms Coordinate distribution hardware and cable routing in a managed enclosure. TelecomDistribution
Application 03 Wall-Mount Locations Use compact enclosures where floor space and equipment count are limited. Wall MountEdge Site
Application 04 Project Integration Confirm dimensions, mounting, cable entry and accessory requirements before supply. IntegrationRequirement Review
