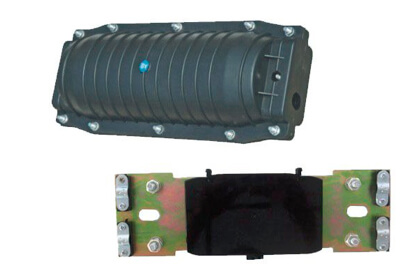

Fiber Splice CSC 1022 Home / Fiber Splice / Fiber Splice CSC 1022 Fiber Splice Closure Fiber Splice CSC 1022 Fiber Splice CSC 1022 is part of OTSCABLE's current fiber splice closure range for distributors, installers and project buyers. Review the published product information below, then confirm the required configuration, quantity, packaging and destination before quotation. model: Size(mm) CSC-1022: 370 x155 ×120 Request a Quote → Specifications Fiber Splice CSC 1022 Specifications Review the specification sections and product information currently published for this product. Features Specification model Size(mm) Core capacity CablePort(max) Max diameter Of cable(mm) Splice Tray model Core capacity Tray Weight (kg) CSC-1022 370 x155 ×120 96 4 φ 19 A1 12~24 1.9 td{border:1px solid #eeeeee;} Sequence Number Inspection Item Requirement Inspection Conclusion Results 1 Appearance and configuration Appearance Shape integnity, Meets the requirements Qualification No defect,color uniform Optical Fibers Storage Set Residual fiber length no less than 1.6m ＞1.6m Residual fiber curvature Radius no less than 30mm ＞35mm Electric Connecting Set Electnic connecting or shut off section in the box,ground lead-out section on the externl shell. Meets the requirements 2 Seal performance Charged with air which pressure is 60KPa±5KPa+65℃、20℃-40℃，2h10cycles,Allow air pressure change 5KPa,immersed in the water for 15min,no air bubbl escape No air bubble escape,air pressure change is 4KPs Qualification Sequence Number Inspection Item Requirement Inspection Conclusion Results 3 Insulated Resistance After soaked into the water which is 1.5m deep for 24h,Insulated resistance≥2×104MΩ Between two metal sections 1×106MΩ Qualification Betwwen metal section and ground 1×106MΩ Qualification 4 Voltage Resisting Strength After soaked into the water which is 1.5m deep for 24h,DC 15KV holding 1min,No breakage,no electric arc Between two metal sections No breakage No electric arc Qualification Betwwen metal section and ground No breakage No electric arc Qualification 5 Seal performance Charged with air which pressure is 100KPa±5KPaimmersed in the water for 15min,no air bubble escape;After remove for 24hr,air pressure keeps unchanged No air bubble escape,air press keeps unchanged Qualification 6 Re-Seal performance Repeat Seal performance 3 times,no air bubble escape;After remove for 24hr,air pressure keeps unchanged No air bubble escape,air press keeps unchanged Qualification Sequence Number Inspection Item Requirement Inspection Conclusion Results 7 Axis Tensile For 800N axis strength Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged Air press keeps unchanged Qualification 8 Crush For 2000N/100mm,crush force,Charged with air which pressure is 60KPa±5KPa,last 1 min,air pressure keeps unchanged Air press keeps unchanged Qualification 9 Impact 16N·m,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged Air press keeps unchanged Qualification 10 Bending 150N,±45°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged Air press keeps unchanged Qualification 11 Torsion 50N,±90°，10cycles,Charged with air which pressure is 60KPa±5KPa,air pressure keeps unchanged Air press keeps unchanged Qualification td{border:1px solid #eeeeee;} Applications Where Fiber Splice CSC 1022 Fits Use the route, enclosure location and splice plan to narrow the suitable model. Final configuration should follow the project specification. Application 01 Outside-Plant Routes Protect splice points along managed outdoor communication routes. Outside PlantCable Joints Application 02 Access Networks Organize fiber branching and continuation points in access infrastructure. Access NetworkDistribution Application 03 Campus Connections Support protected splice locations between buildings and network areas. CampusBackbone Application 04 Repair & Expansion Maintain accessible, labeled splice points for service and future changes. MaintenanceExpansion Related Products Compare Related Fiber Splice Closure Options Fiber Splice CSC 1011 Fiber Splice CSC 1044 Fiber Splice CSC 1210 Fiber Splice CSC1099 Request A Quote Write to Us Share cable type, category, shielding, length, quantity, packaging and destination details. OTSCABLE can review your project and recommend suitable product options. Email[email protected] Phone+86 (0) 755-23769401 Office Address708 Fuben Building, Guanlan Avenue, Longhua New District, Shenzhen, Guangdong, China Request a Product Quote Tell us what you need. Fields marked * are required. Name * Email * Phone Company Message * Δ
Application 01 Outside-Plant Routes Protect splice points along managed outdoor communication routes. Outside PlantCable Joints
Application 02 Access Networks Organize fiber branching and continuation points in access infrastructure. Access NetworkDistribution
Application 03 Campus Connections Support protected splice locations between buildings and network areas. CampusBackbone
Application 04 Repair & Expansion Maintain accessible, labeled splice points for service and future changes. MaintenanceExpansion
