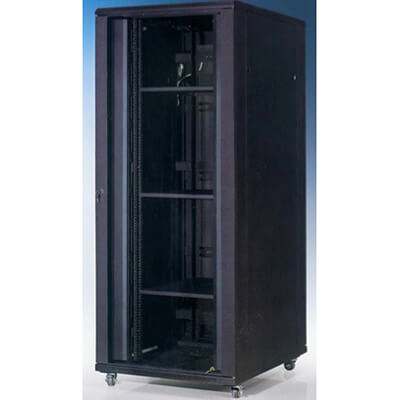

CSB Network Cabinets-1 CSB Network Cabinets-1

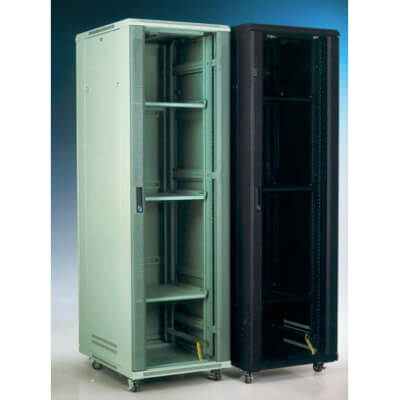

CSE Network Cabinets-1 CSE Network Cabinets-1

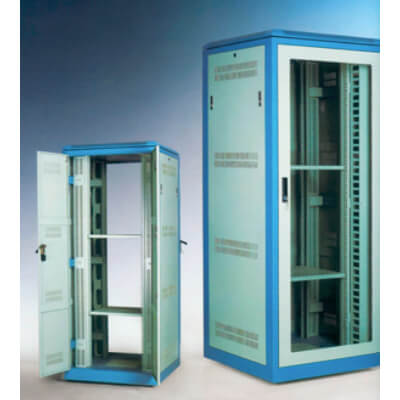

CSB Network Cabinets-2 CSB Network Cabinets-2

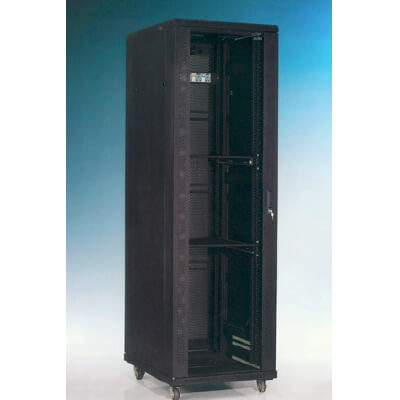

CSB Network Cabinets CSB Network Cabinets

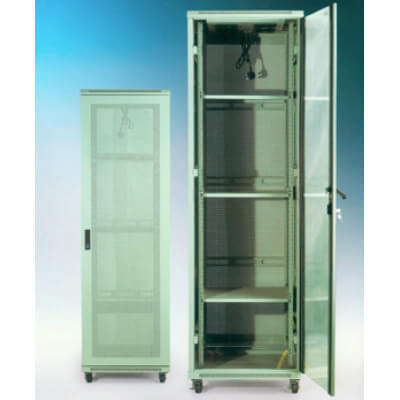

CSB Network Cabinets CSB Network Cabinets

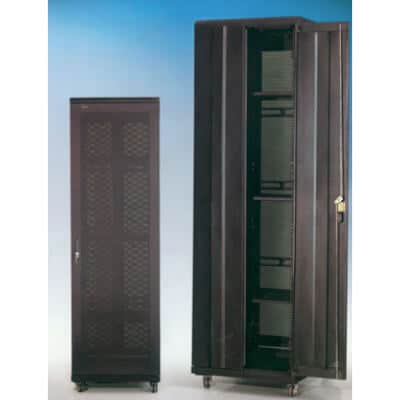

CSB Network Cabinets CSB Network Cabinets

Network Cabinets


Specification:
  1. Comply with ANSI/EIA,RS-310-D;IEC297-2;DIN41491:PART1; DIN41494:PART7;GB/T3047.2-92 standard and ETSI standard.
  2. Reliable structure,static loading capacity:500KG(Optional castors and plinth)
  3. Adjustable feet and heavy duty castors are available simultaneously, moving conveniently and fixing Reliably.
  4. Baying together easy,quickly,efficiently and firmly.
  5. High density vented arc front and rear doors(patent), excellent and elegant exterior design,comprehensive consideration of balances ventilation, exterior door hinge with 180 degrees,the door can be opened to 180 degrees though connected,easily assembled and operated.
  6. Optional cable entry on top cover and bottom panel.Front, rear door and side panels can be removed facility,the bottom has the function of ventilation and rat-proof.
  7. Varies optional accessories,reliable quality.
  8. Optional opening hole and varies specification upon customers’special requirements.

Inquiry This Item


Degreasing,pickling,phosphating,powder coating.
Material and Thickness: SPCC cold rolled Steel
Mounting profile:2.0mm
Others:1.20mm to 1.50mm
Color:RAL9004(black) RAL7044(grey)

Network Cabinet 800mm Width Standard Specification
Width Depth Height U Parking CBM
800 600 992 18 880*680*1072 0.6415
800 880*880*1072 0.8302
900 880*980*1072 0.9245
960 880*1080*1072 1.0189
800 600 1081   22 880*680*1160 0.6941
800 880*880*1160 0.8983
900 880*980*1160 1.0004
960 880*1080*1160 1.1025
   800 600   1303   27 880*680*1383 0.8276
800 880*880*1383 1.071
900 880*980*1383 1.1927
960 880*1080*1383 1.3144
   800 600   1525   32 880*680*1605 0.9604
800 880*880*1605 1.2429
900 880*980*1605 1.3842
960 880*1080*1605 1.5254
   800 600     1748      37 880*680*1830 1.0951
800 880*880*1830 1.4172
900 880*980*1830 1.5782
960 880*1080*1830 1.7392
800 600     1970      42 880*680*2050 1.2268
800 880*880*2050 1.5876
900 880*980*2050 1.768
960 880*1080*2050 1.9483
800 600 2192      47 880*680*2272 1.3896
800 880*880*2272 1.7594
900 880*980*2272 1.9594
960 880*1080*2272 2.1593

Network Cabinet 600mm Width Standard Specification
Width Depth Height U Parking size CBM
600 600 992 18 680*680*1072 0.4957
800 680*880*1072 0.6415
900 680*980*1072 0.7144
960 680*1080*1072 0.7873
600 600 1081   22 680*680*1160 0.5364
800 680*880*1160 0.6941
900 680*980*1160 0.773
960 680*1080*1160 0.8519
   600 600   1303   27 680*680*1383 0.6395
800 680*880*1383 0.8276
900 680*980*1383 0.9216
960 680*1080*1383 1.0157
   600 600   1525   32 680*680*1605 0.7421
800 680*880*1605 0.9604
900 680*980*1605 1.0696
960 680*1080*1605 1.1787
   600 600     1748      37 680*680*1830 0.8462
800 680*880*1830 1.0951
900 680*980*1830 1.2195
960 680*1080*1830 1.344
     600 600     1970      42 680*680*2050 0.948
800 680*880*2050 1.2267
900 680*980*2050 1.3661
960 680*1080*2050 1.5055
    600 600 2192      47 680*680*2272 1.0508
800 680*880*2272 1.3596
900 680*980*2272 1.5141
960 680*1080*2272 1.6686

Network Cabinet standard scheme blank:
NO. Name Unit NOs Materials Remark
600w 800w
1 Frame 2 2 pcs SPCCT=1.2
2 Front door 1 1 pcs SPCCT=1.2 Single opened arc vented door
3 Lock(MS818) 2 2 pcs ---- Handle Lock
4 Rear door(Left) 1 1 pcs SPCCT=1.2 Arc vented door /Double opend left
5 Rear door(Right) 1 1 pcs SPCCT=1.2 Arc vented door /Double opend right
6 Side panel 2 2 pcs SPCCT=1.2 Quick removable Lock
7 Top Cover 1 1 pcs SPCCT=1.2
8 Fan Unit 1 1 pcs SPCCT=0.8
9 4inch Fan   2/4   2/4 pcs ---- Above 800mm
Depth:4pcs
10 Fan power cord 1 1 pcs ---- L=1.80m
11 Bottom panel 1 1 pcs SPCCT=1.2
12 Castor 4 4 pcs ---- 2”without brake
13 Support feet 4 4 pcs   M12
14 Mounting Angle 6 6 pcs SPCCT=1.5 Below 27U
(include 27U):4pcs
15 Mounting Profile 4 4 pcs SPCCT=2.0
16 Fixed shelf   3/1   3/1 pcs SPCCT=1.2-1.5 Below 32U
(include 32U):1pc
17 6 ways universal PDU 1 1 pcs ----
18 Spacer0s --   12/8 pcs SPCCT=2.0 Only for 800mm
Depth,Below 27U
(include 27U):8pcs
19 Cable Management -- 2 pcs SPCCT=1.2 Only for 800mm Depth
