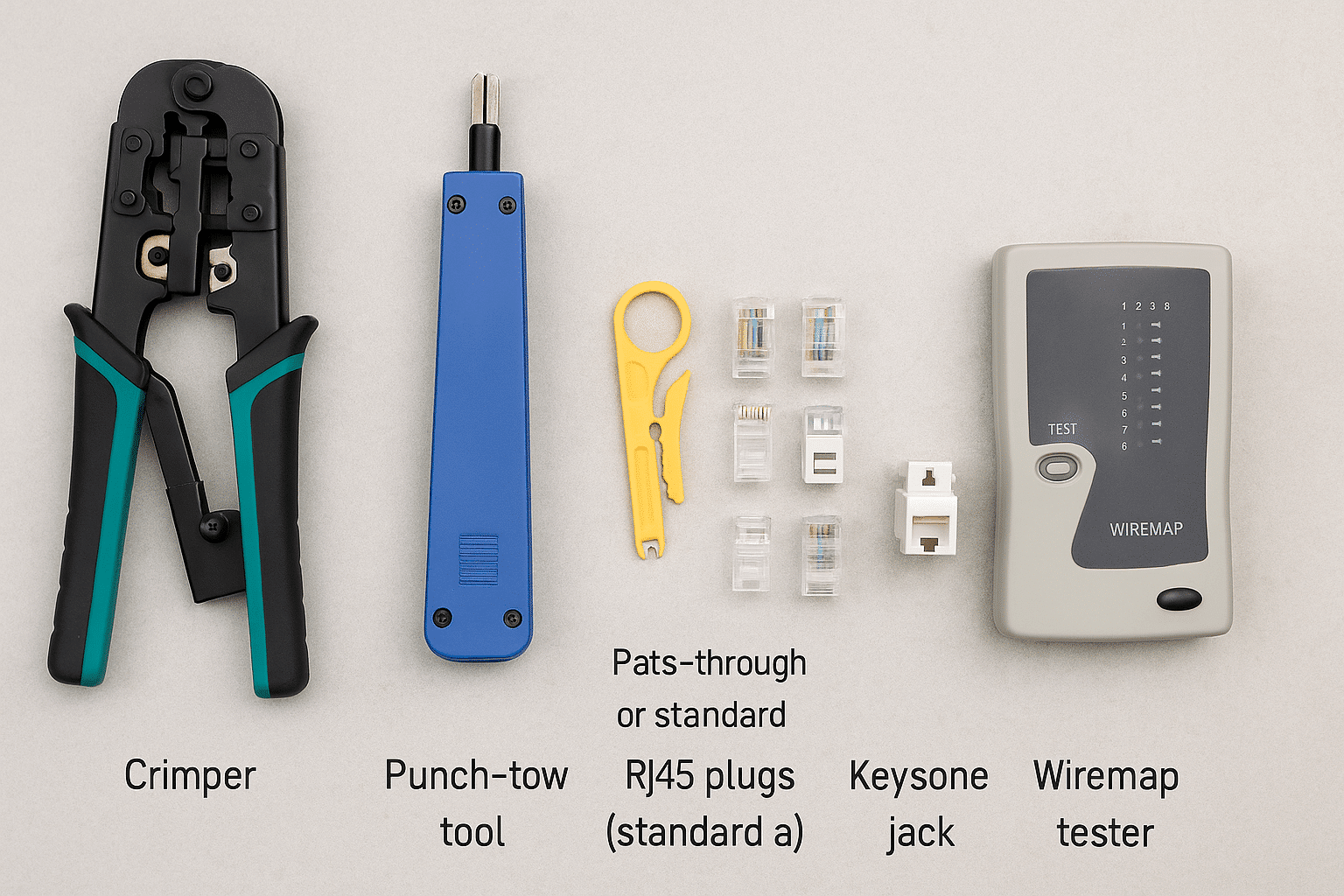

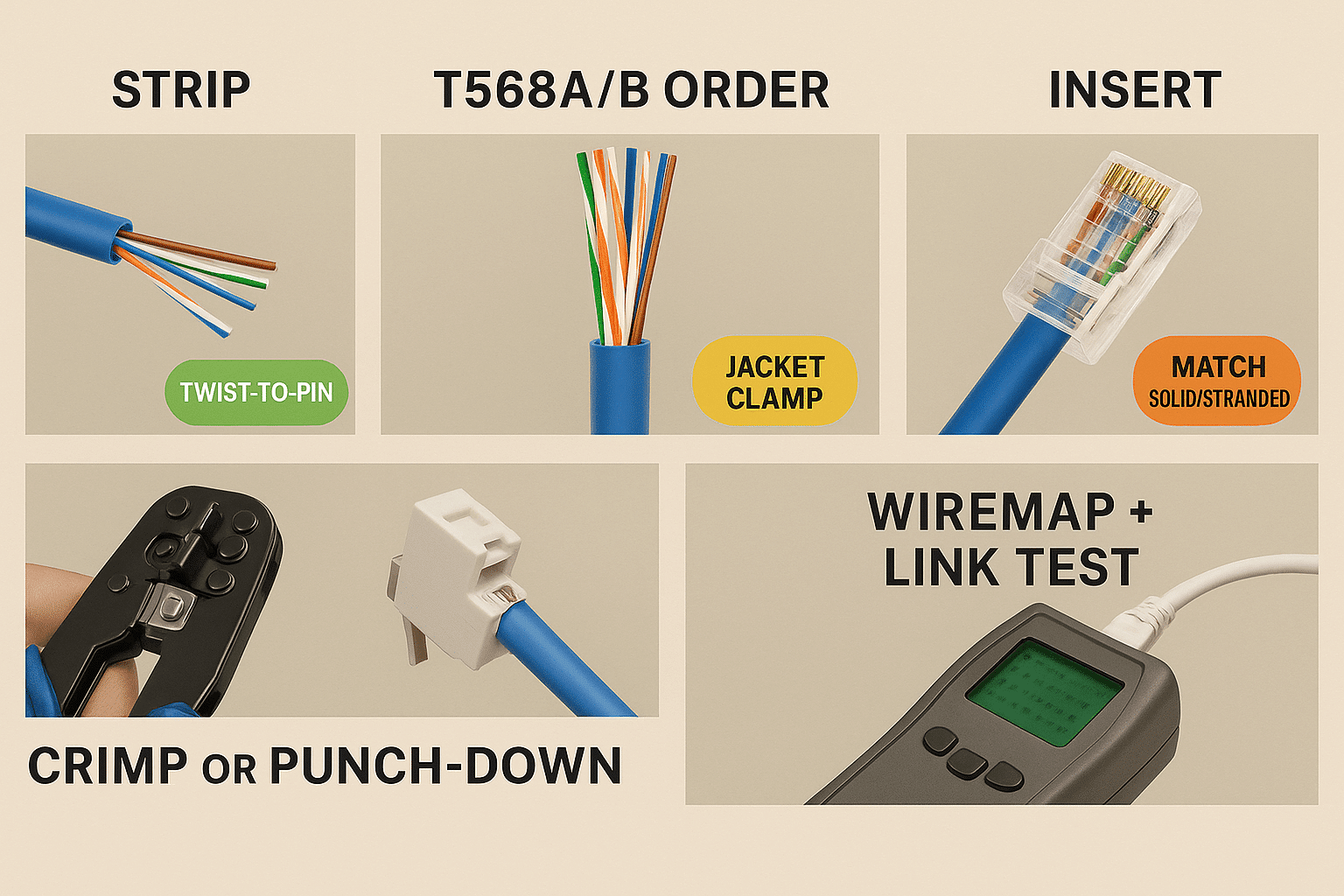

Use the right tools, keep the pair twist to the pins, follow T568A or T568B consistently, and make sure the jacket is captured by the strain-relief. Match your plug to solid or stranded conductors. Don’t ship on LEDs—finish with a wiremap and a quick link test so you catch split pairs early.

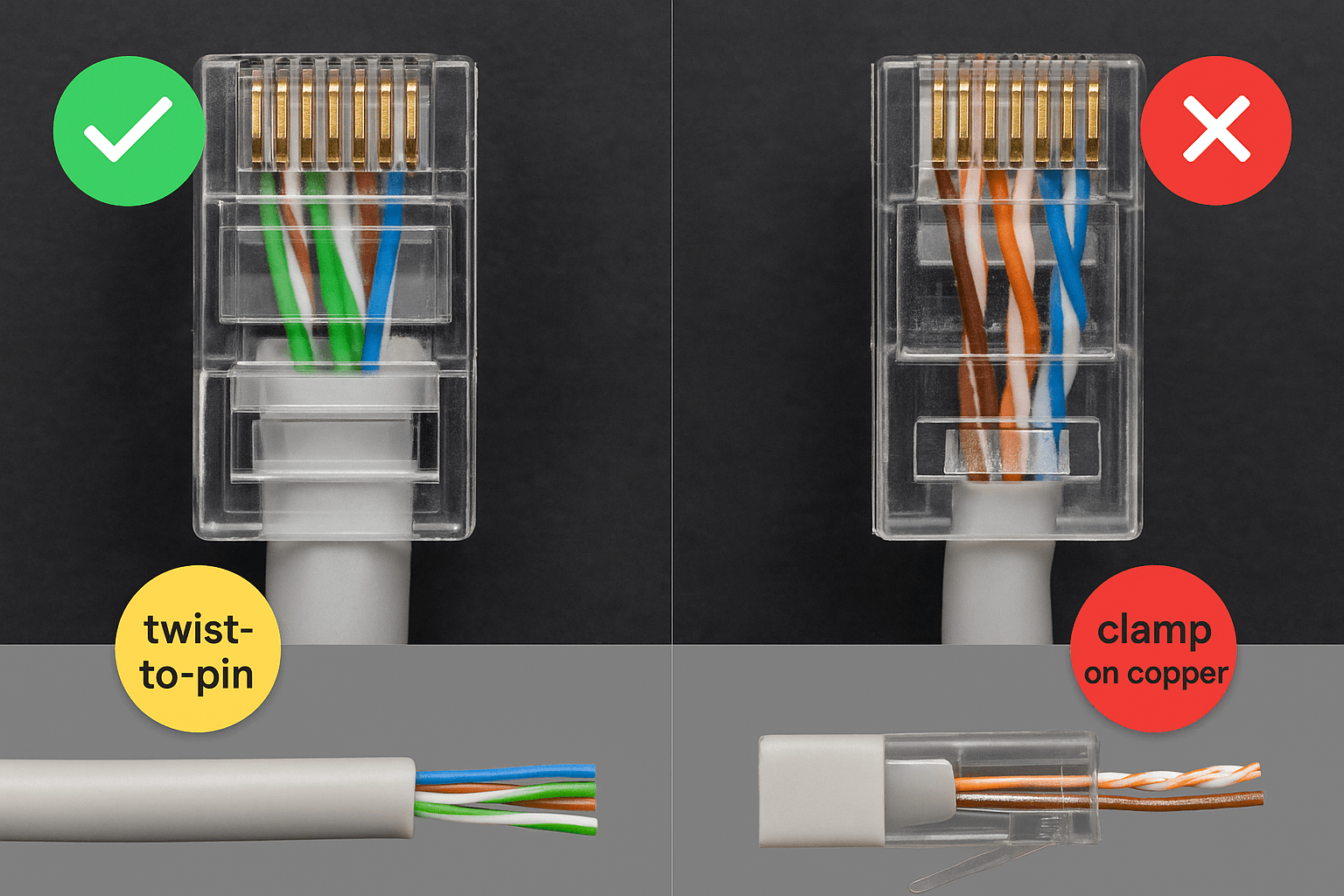

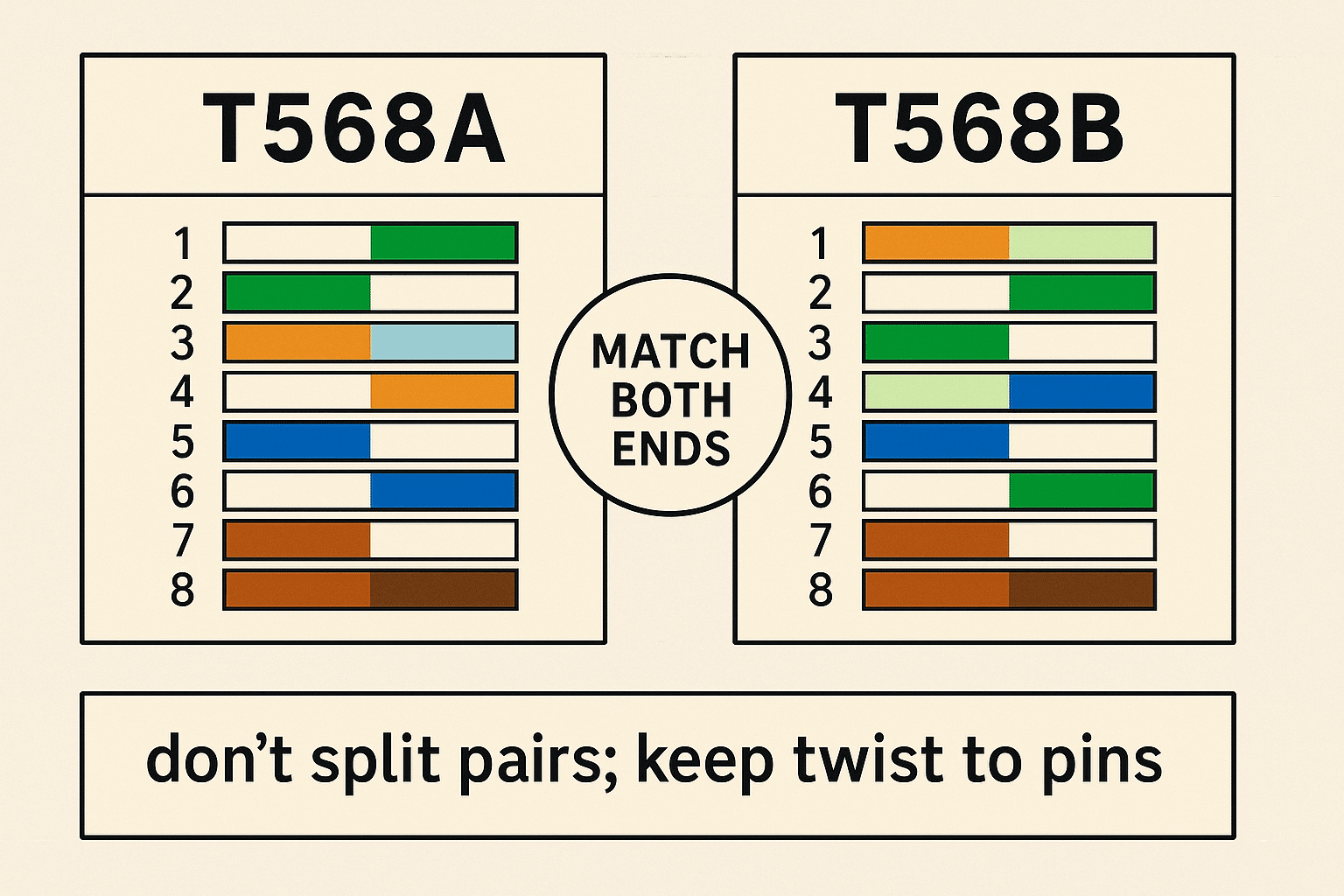

I’m fine with either scheme as long as both ends match. Most of my SOHO jobs default to T568B unless a site standard calls for T568A. What I never do: split pairs just to line up colors—keep twists tight right to the pins to control crosstalk.

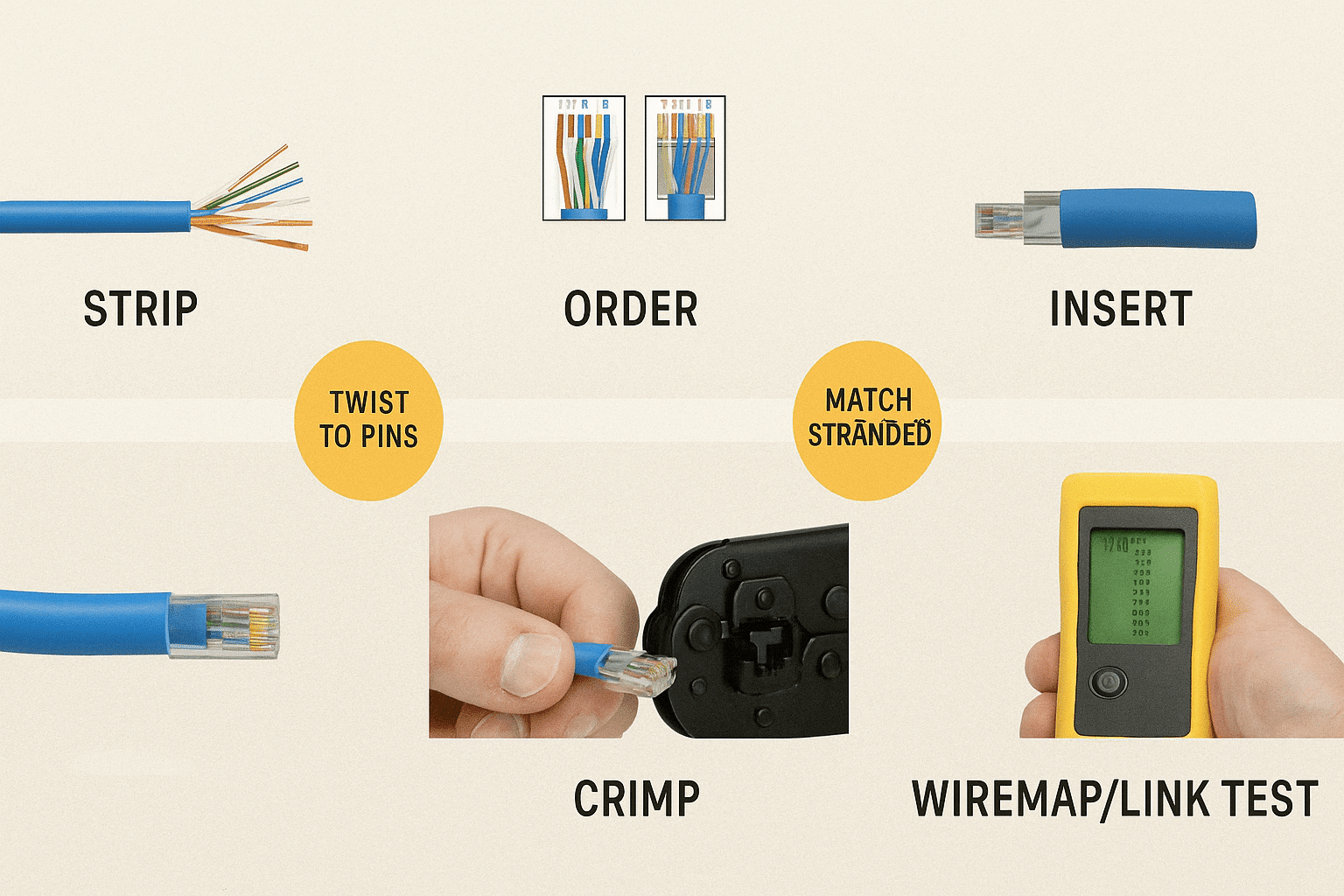

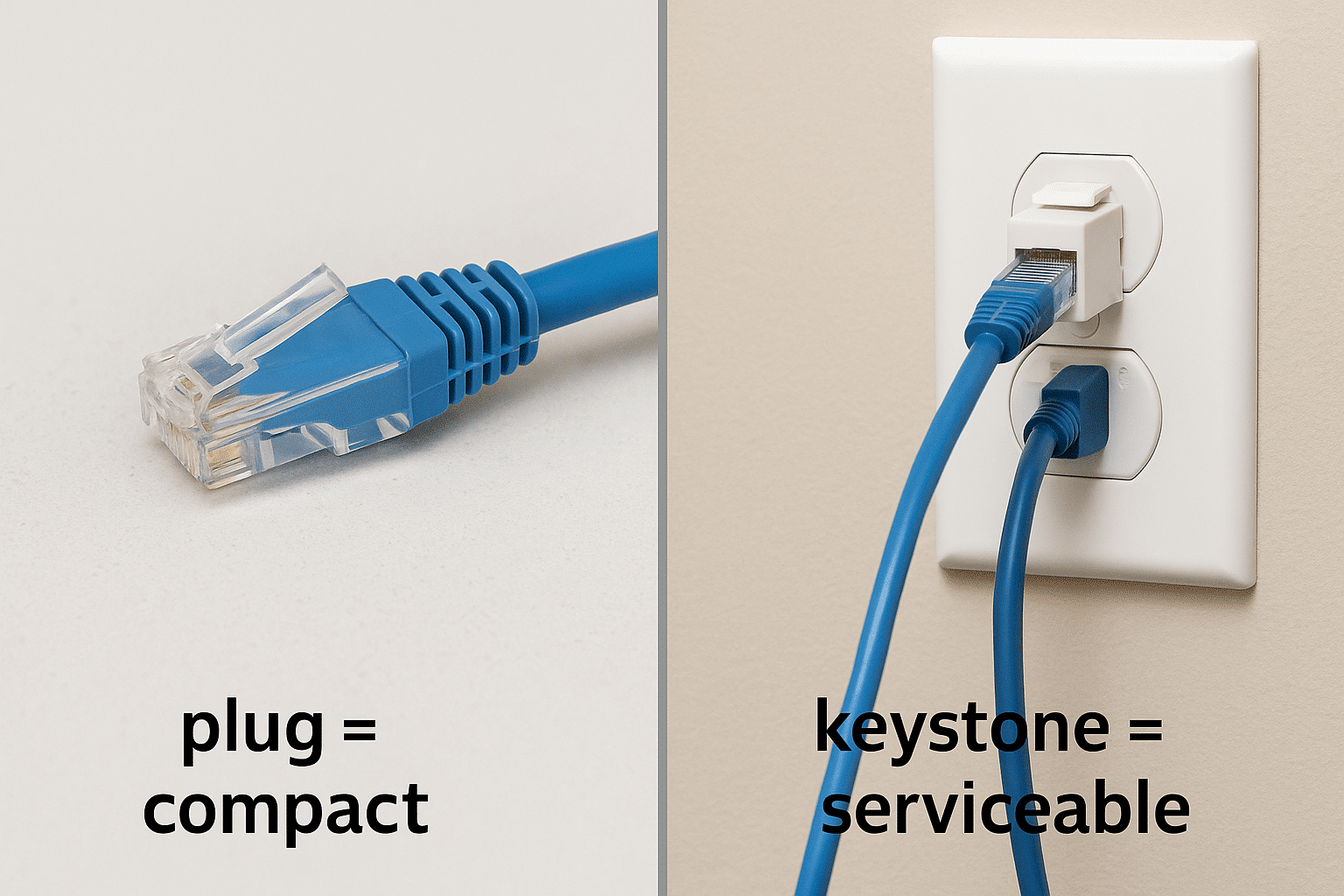

When I crimp a plug: short patch leads or device tails where the cable won’t be moved or stressed. It’s quick and compact, but less serviceable if someone yanks the cord.

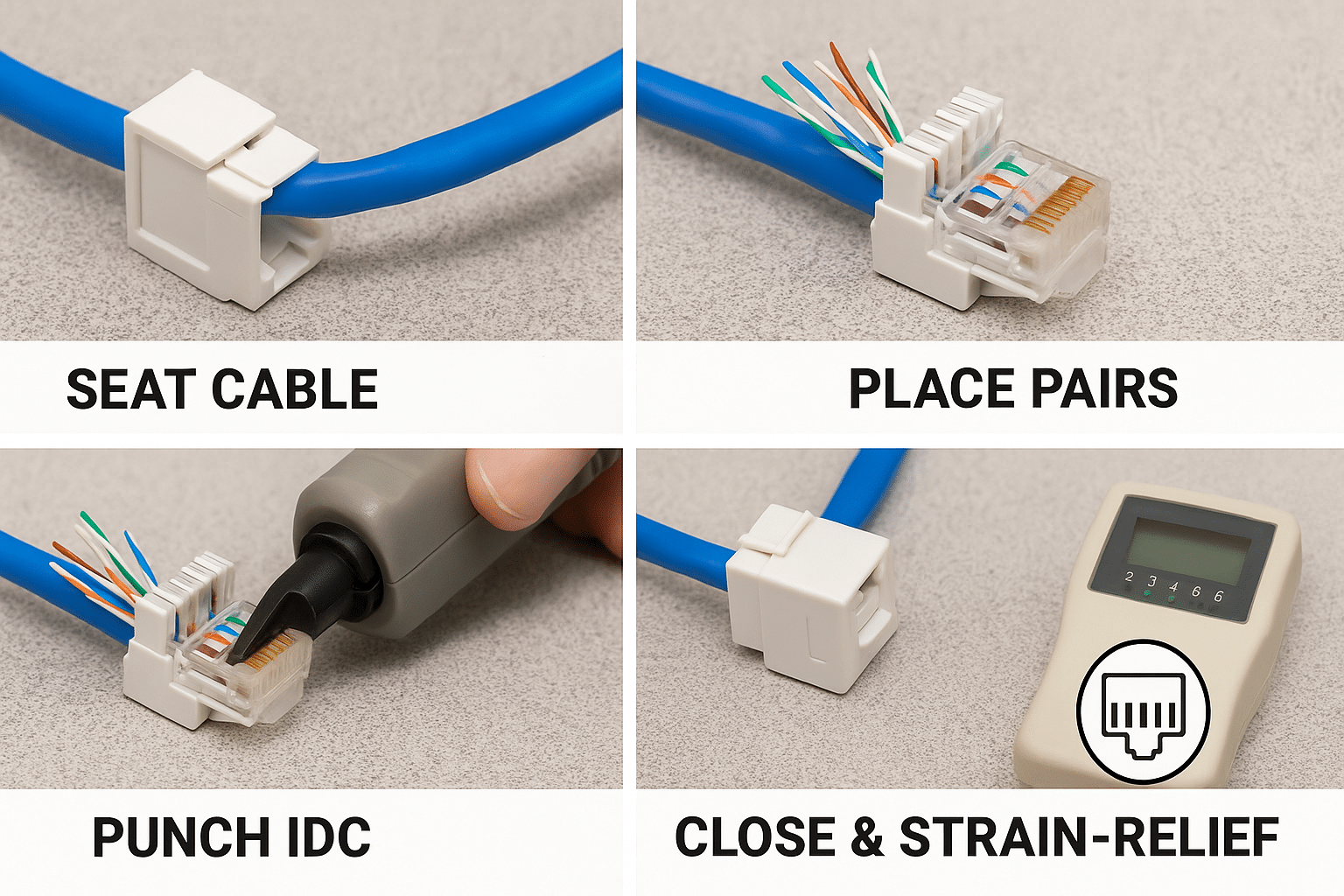

When I punch to a keystone/patch panel: permanent links in walls/ceilings. IDC terminations are robust, easy to re-terminate, and safer for moves/adds/changes.

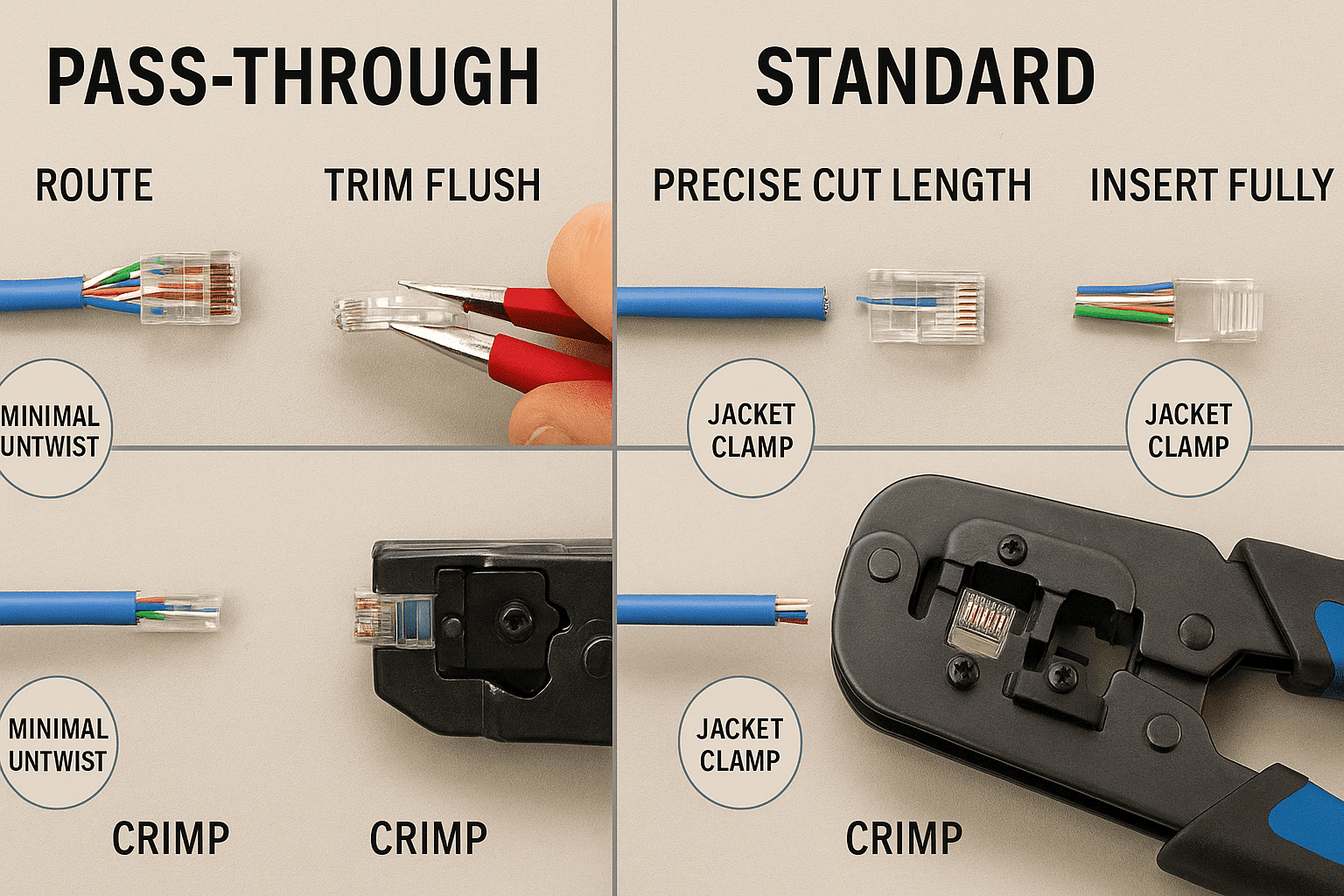

Pass-through plugs make lead management easier—feed the conductors through, trim flush, then crimp. Great for learning and for consistent lead length.
Standard plugs are cheaper and ubiquitous but fussier about cut length; every conductor must reach the pin face before you crimp. Either way: minimal untwist and jacket inside the clamp are non-negotiable.

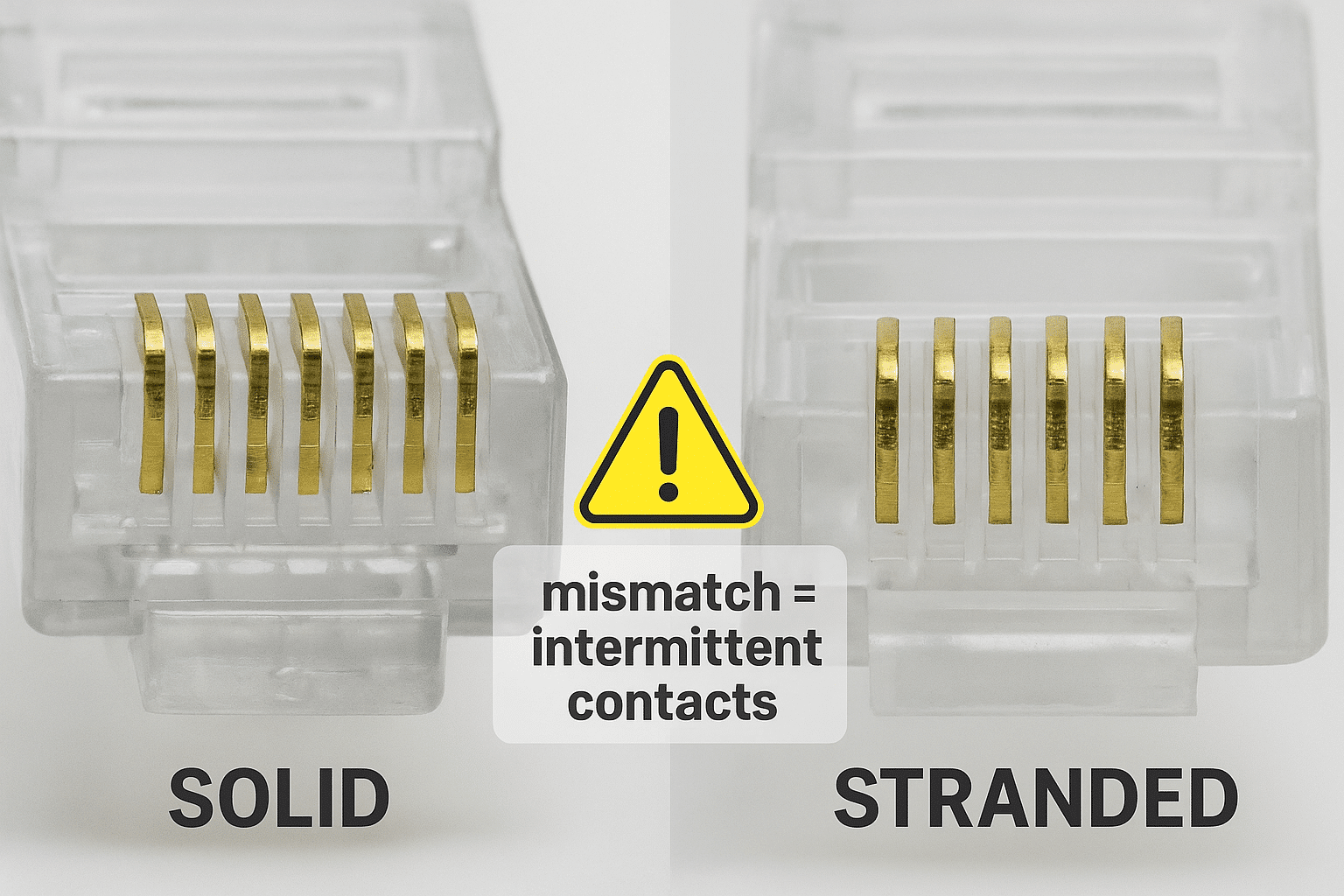

Horizontal cable is usually solid; patch leads are stranded. RJ45 contact teeth are cut differently for each. Using a solid-only plug on stranded (or vice versa) “works” today and goes intermittent later as the contact relaxes. Always match the plug to the conductor type and verify with a wiremap.

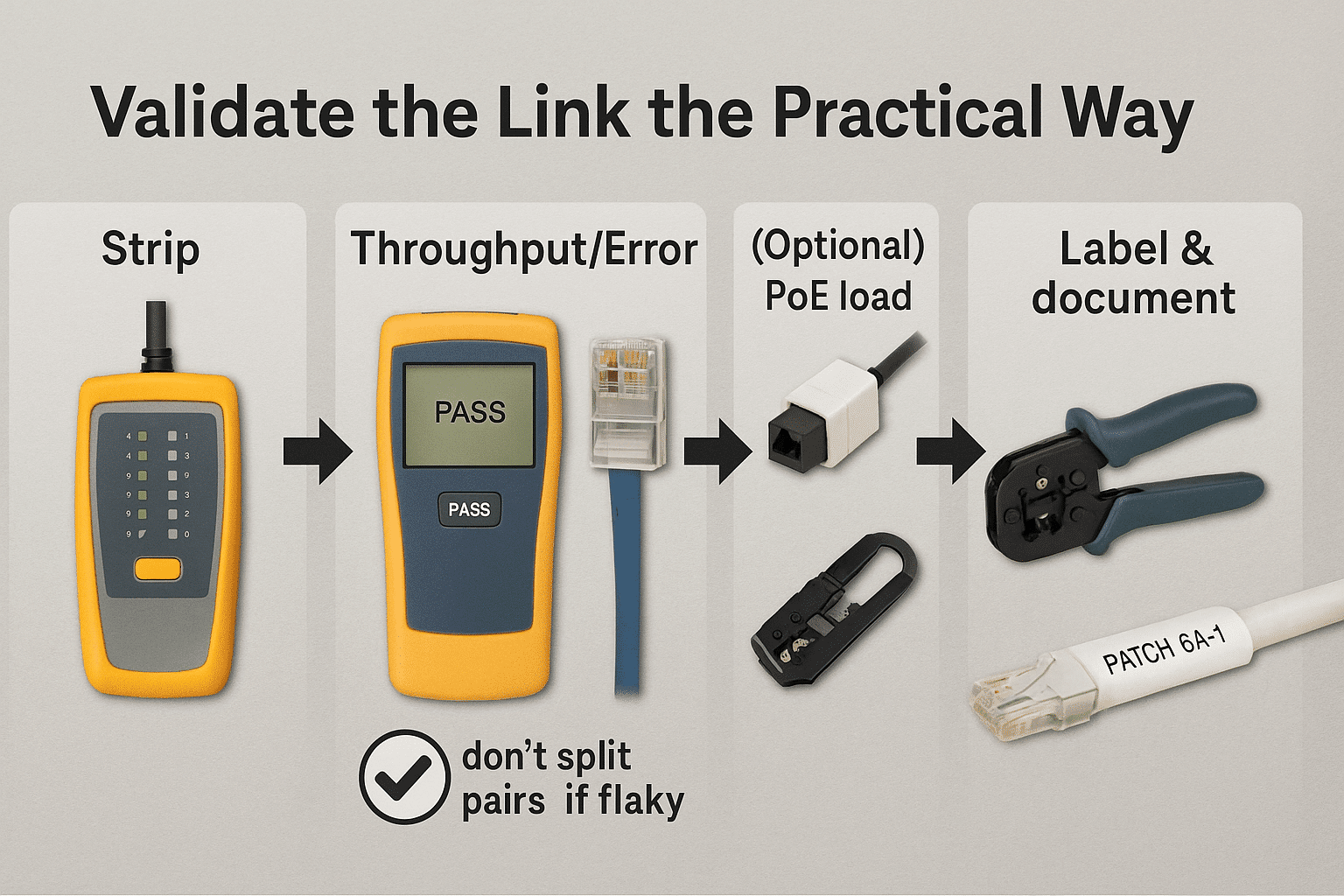

My minimum is a wiremap—it catches opens, shorts, and split pairs instantly. For backbones or sensitive links I add a throughput/error test (and PoE load when relevant). If anything is flaky, I re-terminate first; craft fixes more “mystery slowdowns” than firmware ever will. Label, document, and you’ll save hours later.
Which color order should I use—T568A or T568B? Either works—just keep both ends the same. I default to T568B unless a site standard requires T568A. What matters most is not splitting pairs and keeping the twist right to the pins to control crosstalk.
Do I need pass-through connectors? No, but they help with lead management. Pass-through lets you route and trim flush before crimping. Standard plugs are cheaper but fussier about length—every conductor must reach the pin face before crimp. In both cases: minimal untwist, jacket in the clamp.
Can I terminate Cat 5 without a tester? You can, but I don’t ship without at least a wiremap. LEDs aren’t enough; a wiremap catches split pairs, opens, and shorts in seconds. For backbones or tricky runs, add a throughput/error check (and PoE load when relevant).
Why does my cable light up but run slow? Classic split pair or over-untwist. The link negotiates, but crosstalk kills throughput and raises retries. Re-terminate with twist-to-pin, ensure the jacket is captured by the clamp, verify T568A/B order, and re-test with a wiremap before closing the plate.
Which is better—crimping a plug or using a keystone? Crimp a plug for short patch leads or device tails. Punch to a keystone for permanent links—IDC terminations are robust, easy to rework, and safer for moves/adds/changes. I often keystone the run and use a short factory patch cord to the device.
Termination quality beats luck. If you keep pair twists to the pins, capture the jacket, match the plug to solid/stranded, and test every run, your Cat 5/Cat5e links will be boring—in the best way. That’s how you stop chasing ghosts and keep networks stable.
