Ribbon multi fiber pigtail

Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.


  • 4, 6, 8, 12, 24, 48 fibers optional
  • With a fan out kit at the junction of fibers
  • The fiber is flat type.
  • Applicable connector: FC, SC, ST, LC…
  • Cable material: PVC, OM1, OM2 or OM3 optional
  • Single mode or multi mode
  • Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm


  • Test equipment
  • Optical CATV & LAN
  • Telecommunication networks
  • Optical communication networks

Get A free Quote Now

    Technical Parameters

    Parameter Unit Ribbon multi-fiber connector
    Insertion loss (typical) dB ≤0.3 ≤0.2 ≤0.3
    Return loss dB ≥45 ≥50 ≥60
    Operating wavelength nm 1310, 1510
    Exchangeability dB ≤0.2
    Vibration dB ≤0.2
    Operating temperature -40~75
    Storage temperature -45~85
    Cord diameter mm φ3.0,φ2.0,φ0.9
    Fiber count F 4, 6, 8, 12, 24, … fibers
    Applicable connector   FC, SC, ST, MU, LC

    Ribbon Multi-Fiber Pigtail

    Ribbon Multi-Fiber Pigtail Cable provides a space-saving and efficient way of minimizing network cabling footprint. Our Ribbon Multi-Fiber Pigtail cable assembly provides a maximized fiber density in relation to its cable diameter. This allows up to 48 fiber connections in one source, that can greatly reduce the amount of space eaten up by the fiber cable and can cut a large percentage in splicing labor in installations.

    With its special configuration of connecting multiple fibers with different connectors (FC, SC, ST LC) to a single source or fiber optic device, the Ribbon Multi-Fiber Pigtail can be your optimum fiber network solution in increased bandwidth requirements in campuses and data center backbone installations where high fiber counts are sought for.

    Name Variations:

    • Breakout-style fiber optic cable
    • Ribbon fanout pigtail

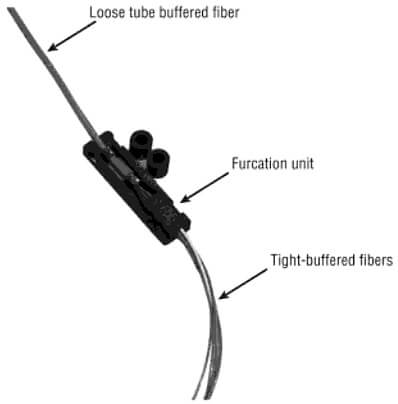

    Fan Out Kit Assembly

    Good Reliability Enabling the Same Bandwidth Capability

    You need not worry about cutting down the bandwidth capacity of this multi-fiber cable because it doesn’t.

    Our Ribbon Multi-Fiber Pigtail Assembly not only delivers the same bandwidth requirement with its individual connector in each fiber, but can also perform excellent quality connectivity in fiber patch panels and cable routers. Ribbon multi-fiber optic cables can reliably deliver high speed data in local area network (LAN) and building backbones

    Enables Ease of Termination that Saves A Lot of Time and Money

    Moreover, Ribbon Multi-Fiber Cables can save you a lot of labor-intensive work during field installations as it is easy to splice the ribbon through mass fusion splicing. Ribbon cables are also naturally more cost competitive in terms of fiber counts as compared with non-ribbon cables.
