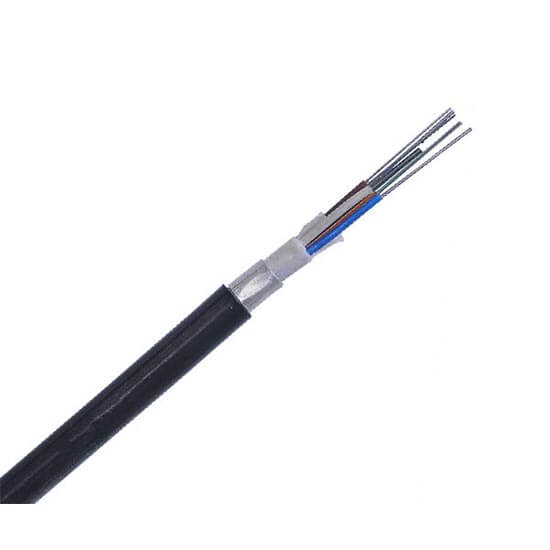

GYTA outdoor cable


Detailed Description
  • Product Name: GYFTY
  • Model: Dielectric Loose Tube Cable
  • Number: O004
Application:
  • Adopted to Outdoor distribution.
  • Adopted to trunk power transmission system.
  • Access network and local network in high electromagnetic interfering places.
Characteristics:
  • Non-metal strength member.
  • Filler protect loose tuber fiber.
  • Non-metal strength has an excellent anti-electromagnet ability.

Inquiry This Item


Cable Count Out sheath Weight Minimum allowable Tensile Strength minimum allowable Crush Load Minimum Bending Radius Storage
Diameter (N) (N/100mm) (MM) temperature
(MM) (KG) short term long term short term long term short term long term (℃)
24 9.8 65 1500 600 1000 300 20D 10D 20
36 9.8 65 1500 600 1000 300 20D 10D 20
42 9.8 65 1500 600 1000 300 20D 10D 20
48 9.8 65 1500 600 1000 300 20D 10D 20
60 9.8 65 1500 600 1000 300 20D 10D 20
72 10.5 85 1500 600 1000 300 20D 10D 20
96 14.5 145 1500 600 1000 300 20D 10D 20
144 18.3 185 1500 600 1000 300 20D 10D 20

Optical Characteristics:
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A、B、C) B1.1:Conventional fiber
G.652D B2: Zero  dispersion shifted
G.655 B1.2 :Cut-off wavelength shifted
G.657(A1、A2 、B3) B4: Main technical data for positive
  dispersion shifted single-mode fiber
