Cat5e vs Cat6: What Changes and What Doesn’t

Cat5e and Cat6 both deliver 1 Gbps to 100 meters when installed cleanly. Cat6 adds headroom and can hold 10 Gbps on short runs (about 55 m) in tidy, low-EMI paths. For most new residential or office pulls I standardize on Cat6; keep Cat5e if you only need gigabit and it cert-tests clean.

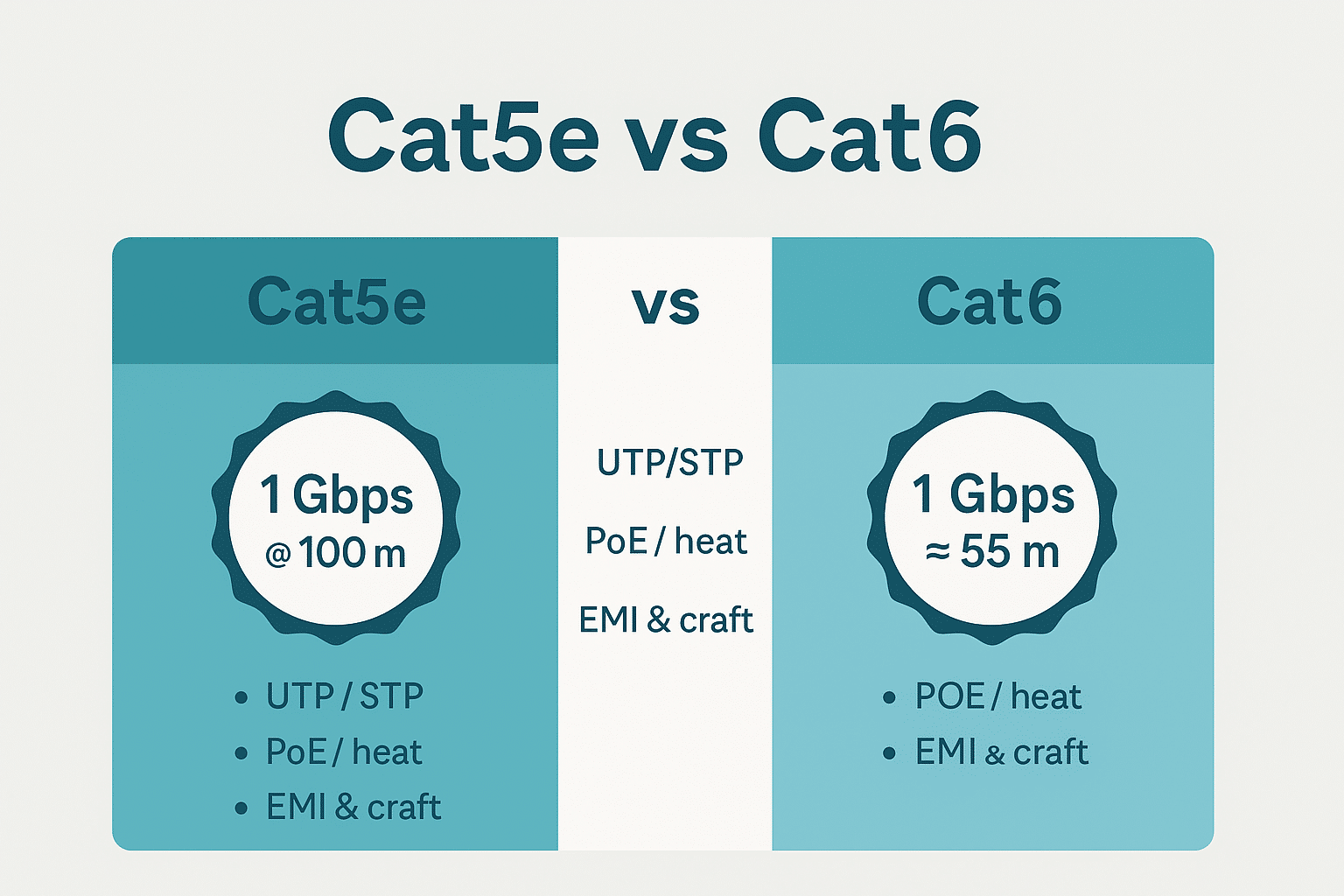

At-a-Glance (Table)

Category	Bandwidth	Stable @ 100 m	10G Window	Shielding Options	Install Complexity	Typical Use	My Take
Cat5e	100 MHz	1 Gbps	—	UTP (common), STP (rare)	Low	Legacy/home/office gigabit	Keep if you only need 1G and it cert-tests clean.
Cat6	250 MHz	1 Gbps	≈ 55 m (clean installs)	UTP or STP	Low–Mid	1G everywhere; short 10G in racks	Best value for new pulls; adds headroom.

Performance & Distance

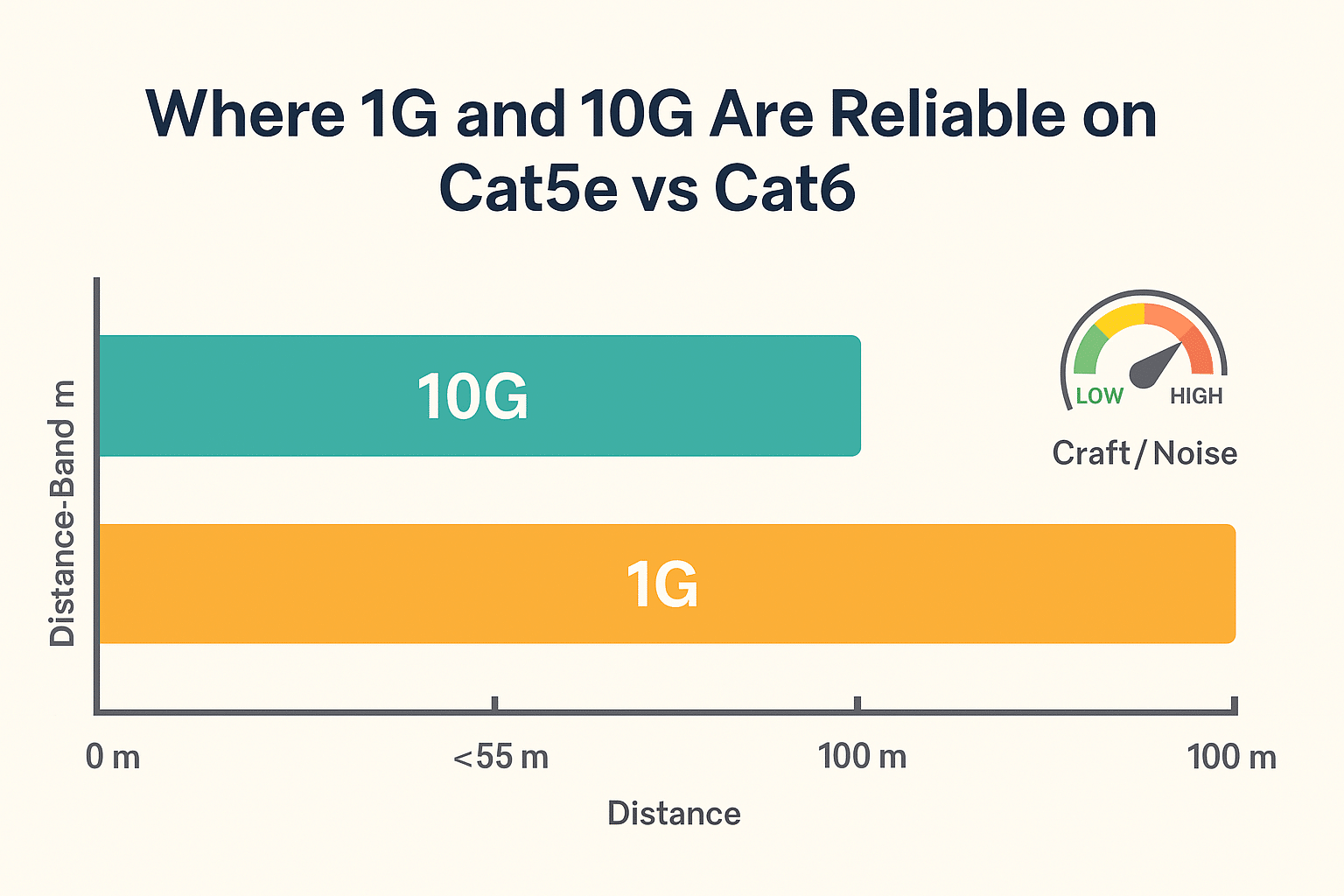

• Both do 1 Gbps @ 100 m. That’s the planning number for a standards-compliant channel when workmanship and patching are solid.
• Cat6 can hold 10 Gbps on short runs (~55 m). Success depends on clean terminations (twist-to-pin), quality patch cords, gentle bends, and low-EMI pathways. If those variables drift, links down-negotiate or jitter under load.

Shielding, PoE & Installation

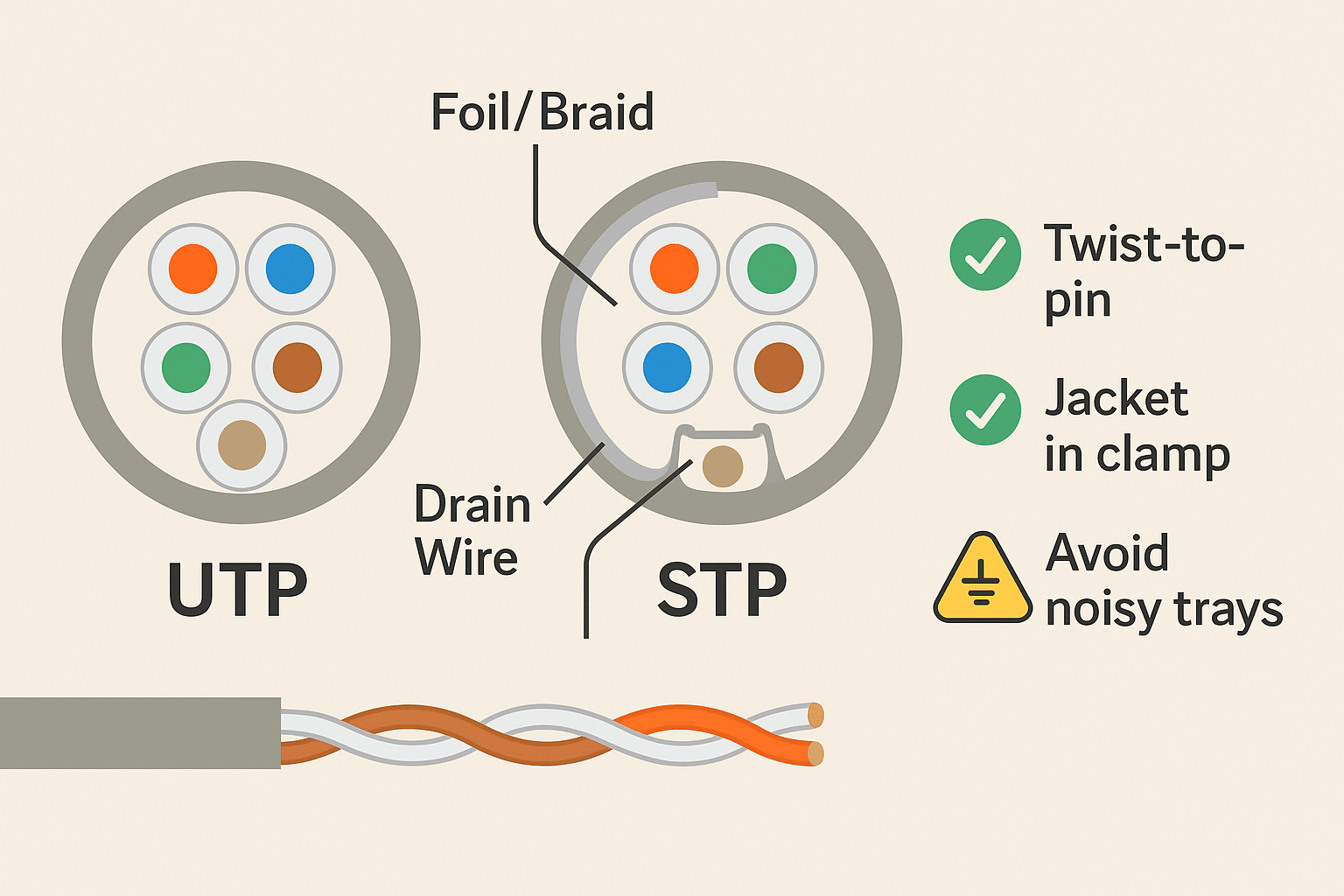

Shielding choices. Cat5e is most often UTP; Cat6 comes in UTP or STP. I default to UTP for quiet paths. In noisy trays (ballasts, motors, elevators), Cat6 STP helps—but only with proper bonding and continuous shielding end-to-end. Poor shielding can backfire.

PoE & thermal headroom. Both categories carry PoE well when you use pure-copper cable, clean terminations, and sensible bundling. If you’re stacking many PoE runs in a hot closet, Cat6’s larger conductor options and tighter crosstalk control give a little extra margin under load.

Workmanship beats luck. Keep twist to the pins, capture the jacket in the strain-relief, respect bend radius, and avoid tight bundles near power. Most “mystery slowdowns” trace back to craft, not the printed category.

RJ45, Testing & Certification

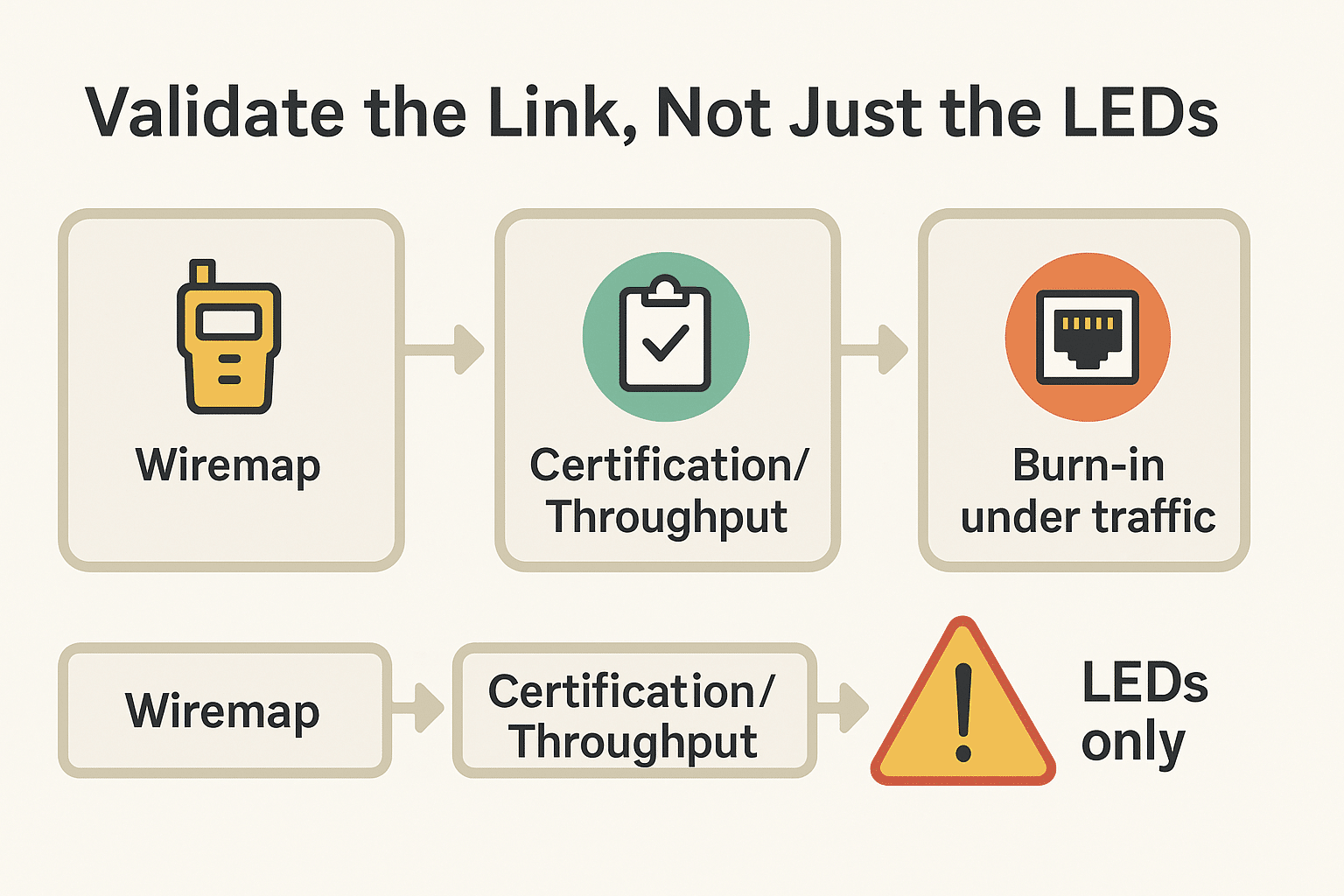

Both Cat5e and Cat6 live in the RJ45 ecosystem—switches, NICs, patch panels, and testers all line up. I never ship a run without a wiremap at minimum; for new backbones or chronic trouble spots I add certification/throughput tests. Link LEDs are necessary, not sufficient.

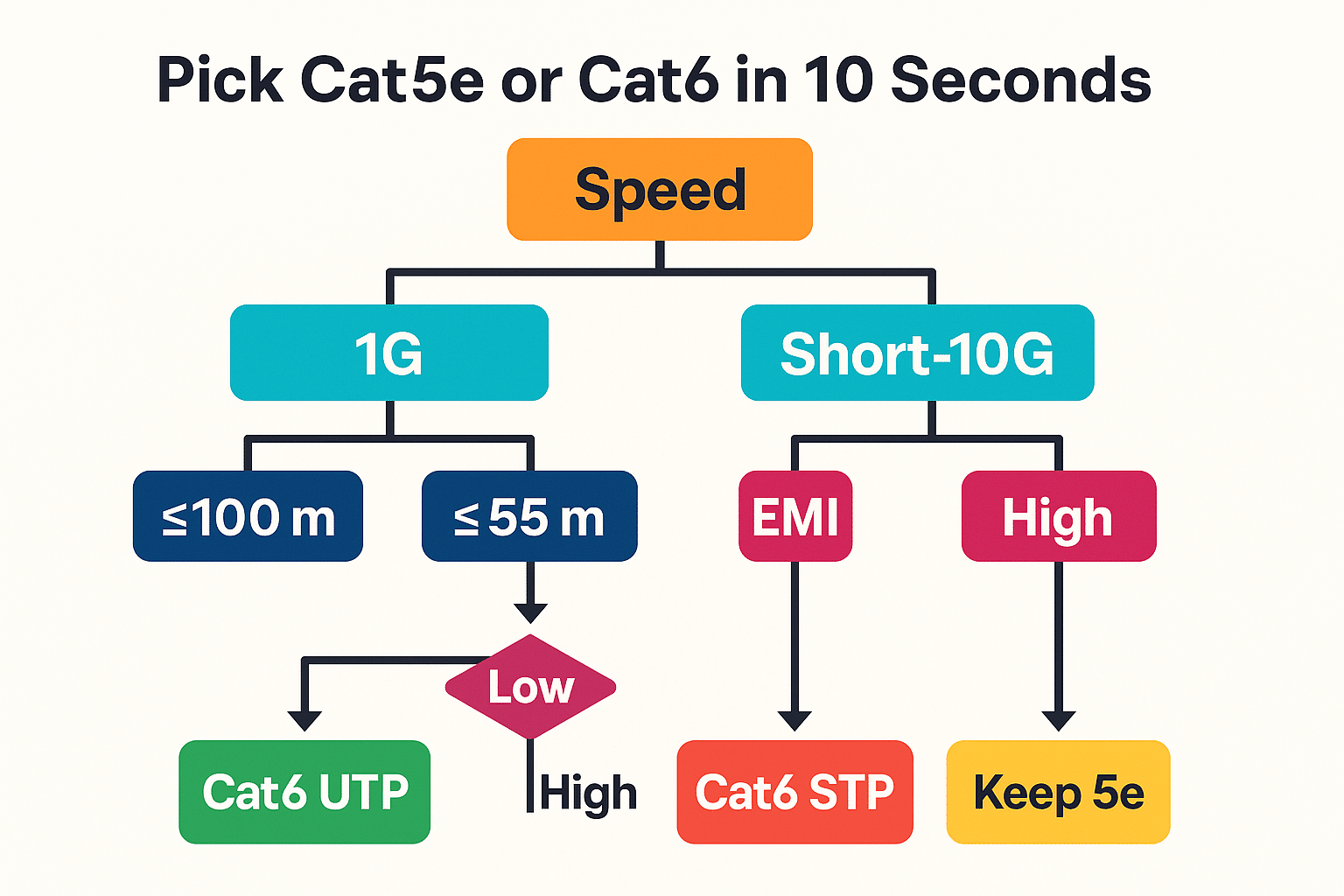

Decision Guide (Quick Table + Flow)

Use this to choose in seconds.

Target Speed	Longest Run	EMI Level	Budget	Recommended	Why / Notes
1 Gbps	≤100 m	Low–Med	Standard	Cat6 (UTP)	Same 1G as 5e, more headroom for messy realities.
1 Gbps	≤100 m	Med–High	Standard	Cat6 (STP)	Shielding if the pathway is noisy; plan grounding.
Short 10 G	≤55 m	Low–Med	Standard	Cat6	Holds 10G when craft is clean and EMI is low.
Only Gigabit, existing runs	—	Low–Med	Lowest	Keep Cat5e	If it cert-tests clean, there’s no need to rip/replace.

Cost & Future-Proofing

For new pulls I standardize on Cat6—minimal price delta, better near-term resilience, and an easier path to short-reach 10G. I keep Cat5e where it cert-tests clean and the requirement is only 1G. If you see heavy multigig or pervasive 10G coming, start planning Cat6A for 10G @ 100 m.

FAQs

Is CAT5e better than Cat6?
No—Cat6 isn’t about “faster gigabit,” it’s about more margin. Both deliver 1G @ 100 m; Cat6 simply tolerates messy real-world routing a bit better and can hold short-reach 10G when the path is tidy and quiet. I pick it for most new runs.

Do I really need Cat6?
If you’re pulling new cable, yes—it’s the smarter default. If your building already has Cat5e and you only need 1G, keep it—if it cert-tests clean. Upgrade once you need multigig or the links start failing margin checks.

Is CAT5e good enough for 4K/gaming?
For 1G internet and local traffic, absolutely. Stability hinges on craft and routing far more than the label. Keep patch cords short, avoid noisy trays, and your Cat5e/Cat6 link will be indistinguishable at typical gaming/streaming workloads.

How fast is Cat5e vs Cat6?
Both are 1 Gbps @ 100 m by spec. Cat6 adds a 10G window ≈ 55 m in low-EMI conditions with clean terminations. If you need guaranteed 10G at full distance, plan Cat6A (or fiber) and certify.

Conclusion & CTA

My rule: buy for speed × distance × noise—then certify. That’s why I default to Cat6 for new building pulls and keep Cat5e only where 1G is all you need and the link passes certification. It keeps today simple and tomorrow flexible.
