Cat 6 vs Cat 5/5e Compatibility — What Actually Works

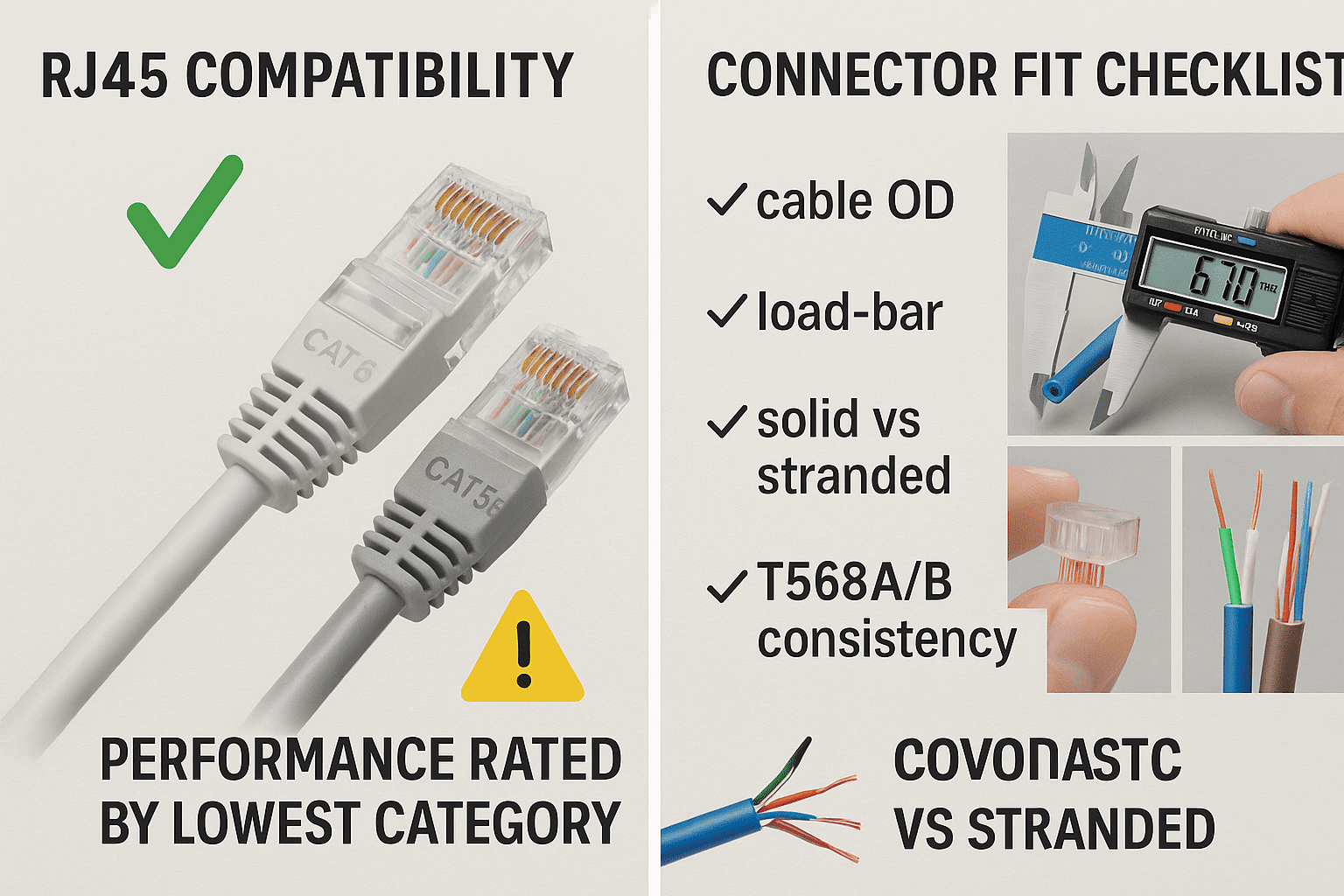

Cat 6 is mechanically and electrically RJ45-compatible with Cat 5/5e gear, so you can mix them and the link will work. Performance, however, is rated by the lowest category in the channel, so mixing will not “upgrade” throughput. Get the connector fit right (OD, load-bar, solid/stranded) and keep T568A/B consistent.

What “Compatible” Really Means (RJ45 vs Performance)

RJ45 is the common physical interface, so Cat 6 patch cords and horizontal runs plug into Cat 5/5e ports, panels, and devices without drama. That’s mechanical/electrical compatibility.

Performance and certification are different: a mixed channel is rated by the lowest category present, so a Cat 6 cord into a Cat 5e channel still behaves like Cat 5e. No category label on one segment can raise the channel’s rating.

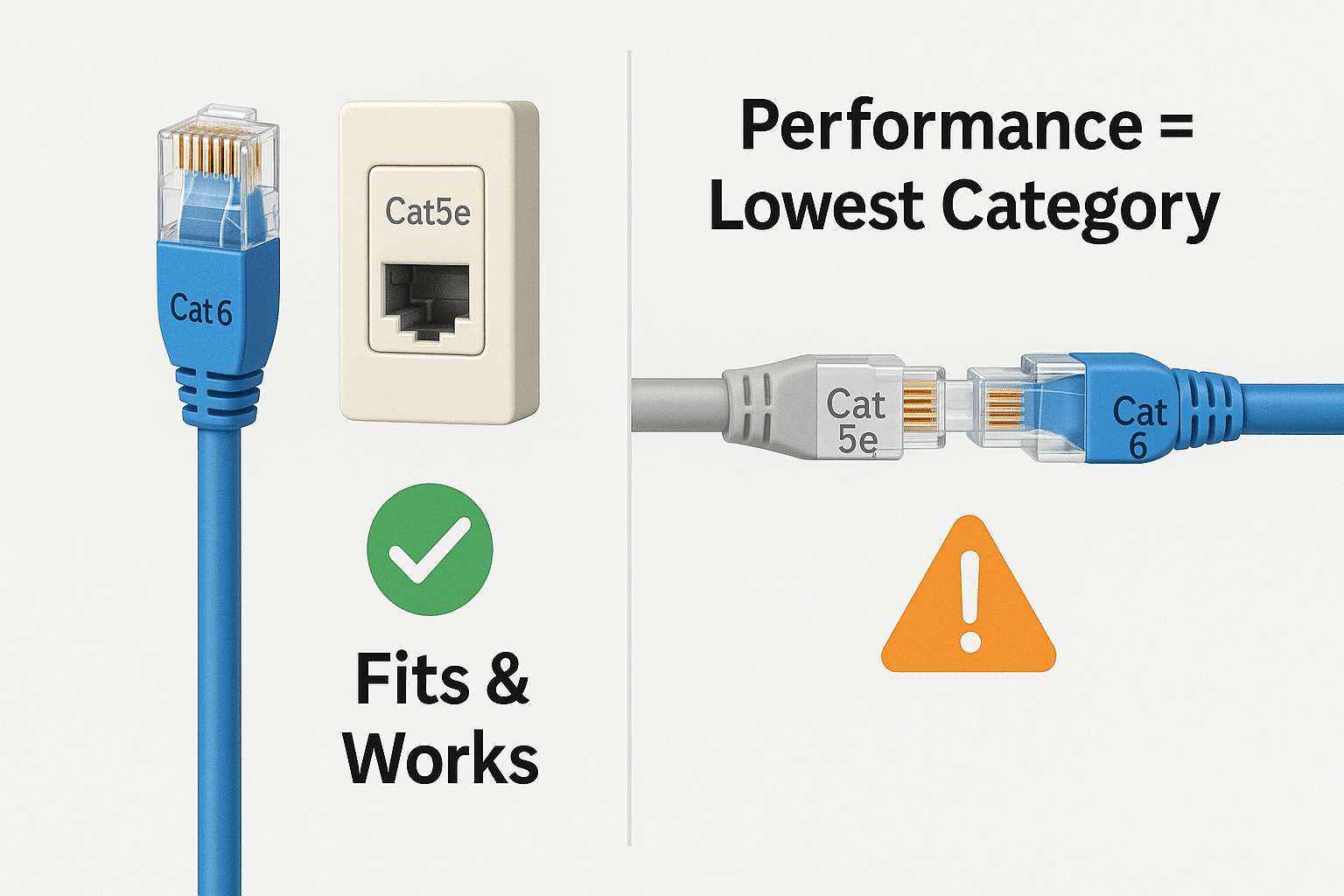

Illustration showing that Cat 6 cables plug into Cat 5e jacks without issue, but the overall channel is rated by the lowest category present.

Mixing Cat 6 and Cat 5/5e — What Actually Happens

Common mix	Will it work?	Channel rating	What to expect
Cat 6 patch cord → Cat 5e wall jack/patch panel → Cat 5e horizontal	Yes	Cat 5e	1 Gbps @ 100 m when installed cleanly; no “upgrade” from the Cat 6 cord.
Cat 6 horizontal → Cat 5e jacks/panel → Cat 6 patch cords	Yes	Cat 5e	Bottleneck is the Cat 5e components; certify as Cat 5e.
Cat 6 everything except one Cat 5e segment	Yes	Cat 5e	The weakest link sets the ceiling until you replace it.
No link after move	Poor strain-relief / over-bent run	Re-seat strain-relief; fix bend radius and pathway

Connector Fit & Termination (OD, Load-Bar, Solid/Stranded)

Compatibility isn’t just the jack—it’s the fit. Cat 6 often has a larger OD and may need plugs/load-bars sized for that jacket. Match plugs to solid or stranded conductors, and seat pairs fully with twist to the pins; use T568A or T568B consistently on both ends.

I avoid “force-fitting” Cat 6 into plugs designed for smaller OD or the wrong conductor type; that’s how you get intermittent contacts that only show up under movement or load. If the spec sheet doesn’t list OD and conductor support, I don’t buy it.

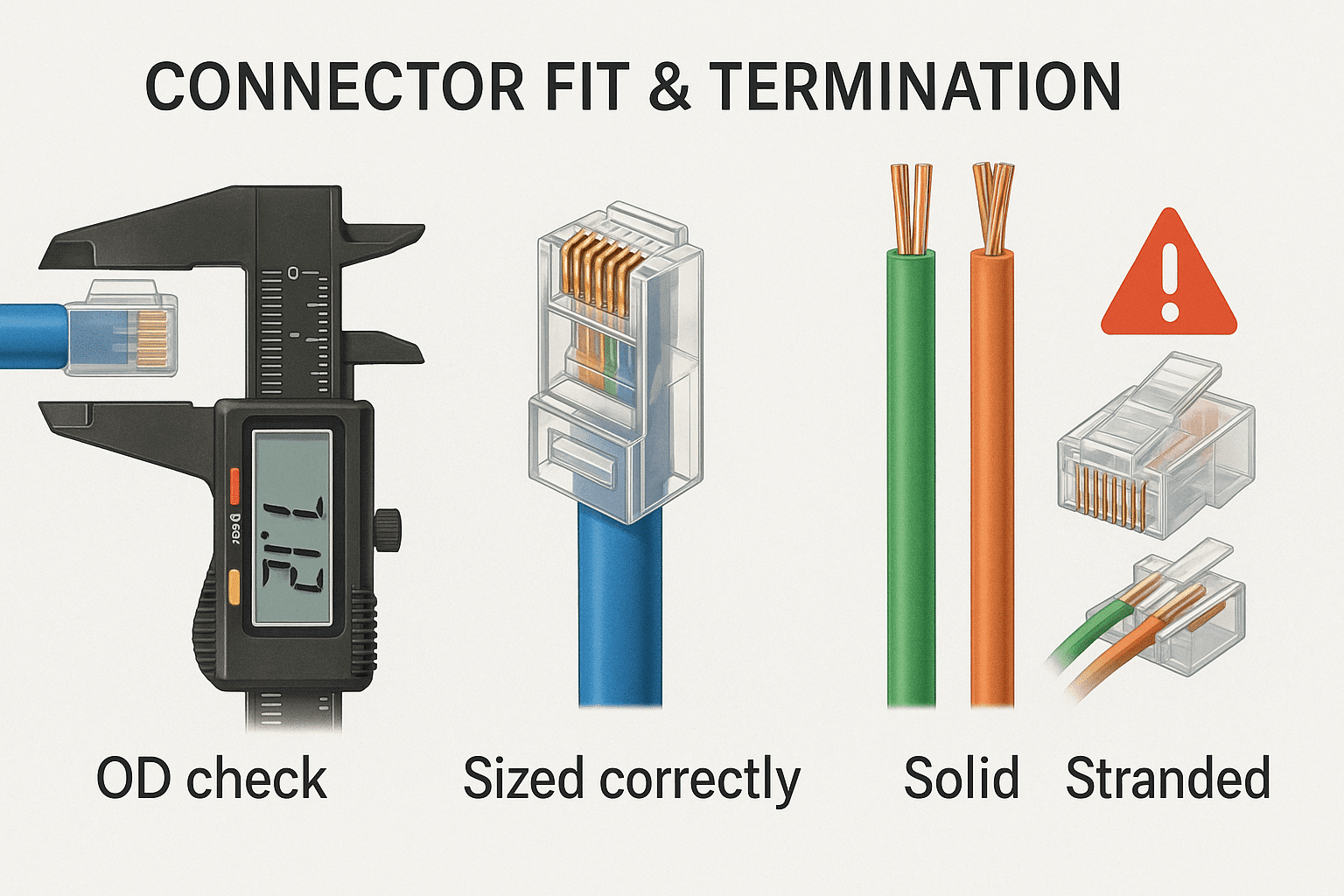

Infographic showing Cat 6 cable OD measured with calipers, proper load-bar fit, solid vs stranded conductor plugs, and a warning against force-fitting mismatched connectors.

Speed & Distance Windows (1G/10G Reality)

Mixed Cat 6/Cat 5e channels reliably do 1 Gbps at 100 m when workmanship and routing are solid. 10 Gbps requires an end-to-end Cat 6/6A path, proper parts, and low EMI; if a Cat 5/5e piece is present, the channel falls back to that category’s capability and should be certified accordingly.

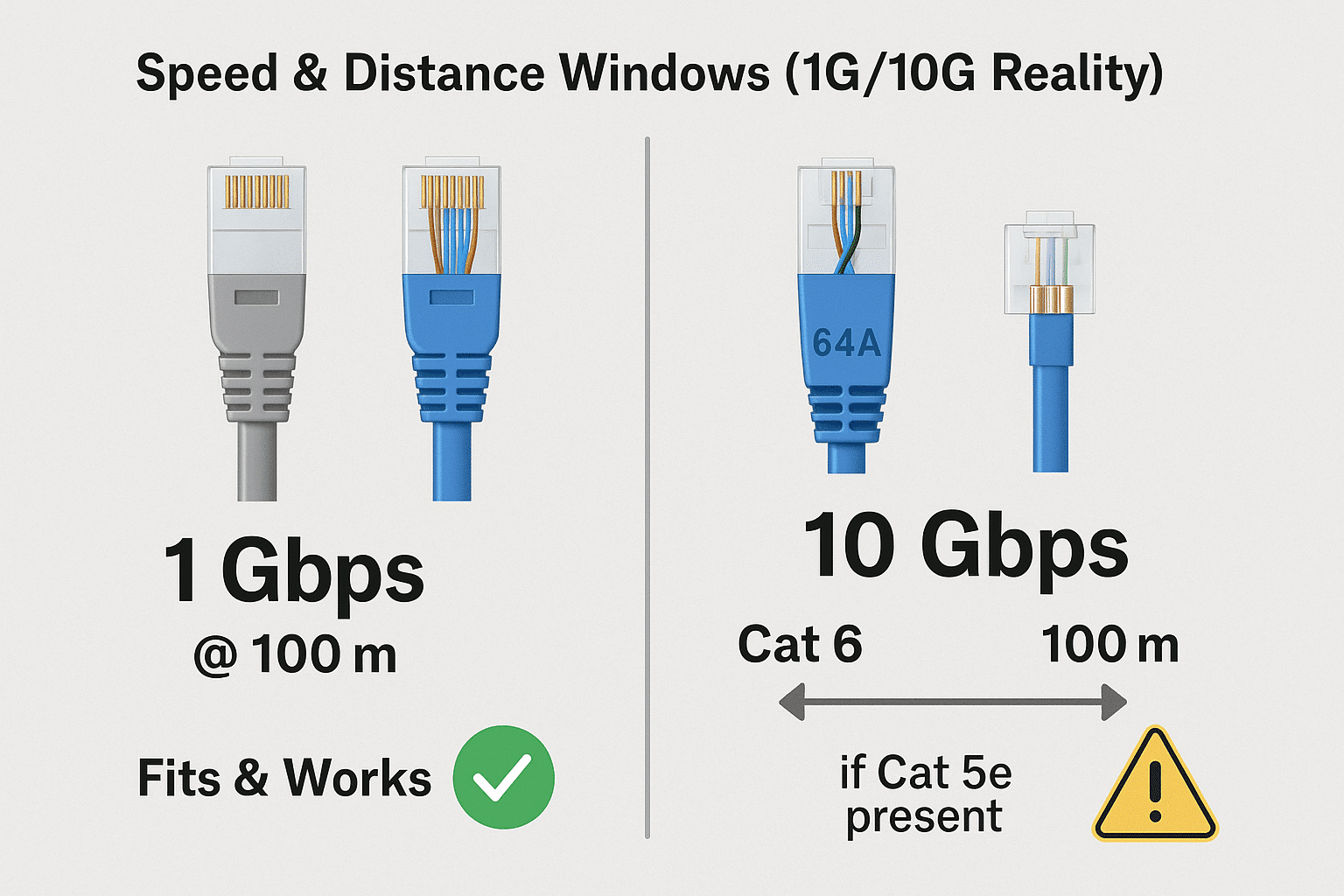

Infographic showing that Cat 5e and Cat 6 both support 1 Gbps at 100m, while 10 Gbps requires end-to-end Cat 6 (up to 55m) or Cat 6A (up to 100m), with any Cat 5e segment limiting performance.

Wi-Fi 6 Uplinks: Do You Need Cat 6?

Wi-Fi 6 is a wireless standard; your wired uplink determines the AP’s backhaul. If the uplink is 1 Gbps, Cat 5e is fine when it cert-tests clean. If you’re deploying 2.5/5/10G uplinks or want more EMI margin, standardize on Cat 6/6A for the runs to your switching gear.

Decision Guide (Quick Table + Flow)

Requirement	Longest run	Environment	Recommendation	Why
Only gigabit	≤100 m	Normal office/home	Keep Cat 5e or use Cat 6	Both deliver 1G @ 100 m; Cat 6 adds margin.
Short-reach higher throughput (2.5/5/10G)	≤55 m (10G)	Low EMI, tidy craft	Cat 6 (or 6A for full 100 m 10G)	Multigig needs end-to-end higher category.
Mixed legacy + new cords	≤100 m	Varies	Works, rated by lowest link	Performance won’t exceed the weakest component.

Flow (in words): Start with the speed target → check run length → consider EMI/craft → if any Cat 5/5e segment remains, the channel is Cat 5e; to “upgrade,” replace every segment with Cat 6/6A parts and certify.

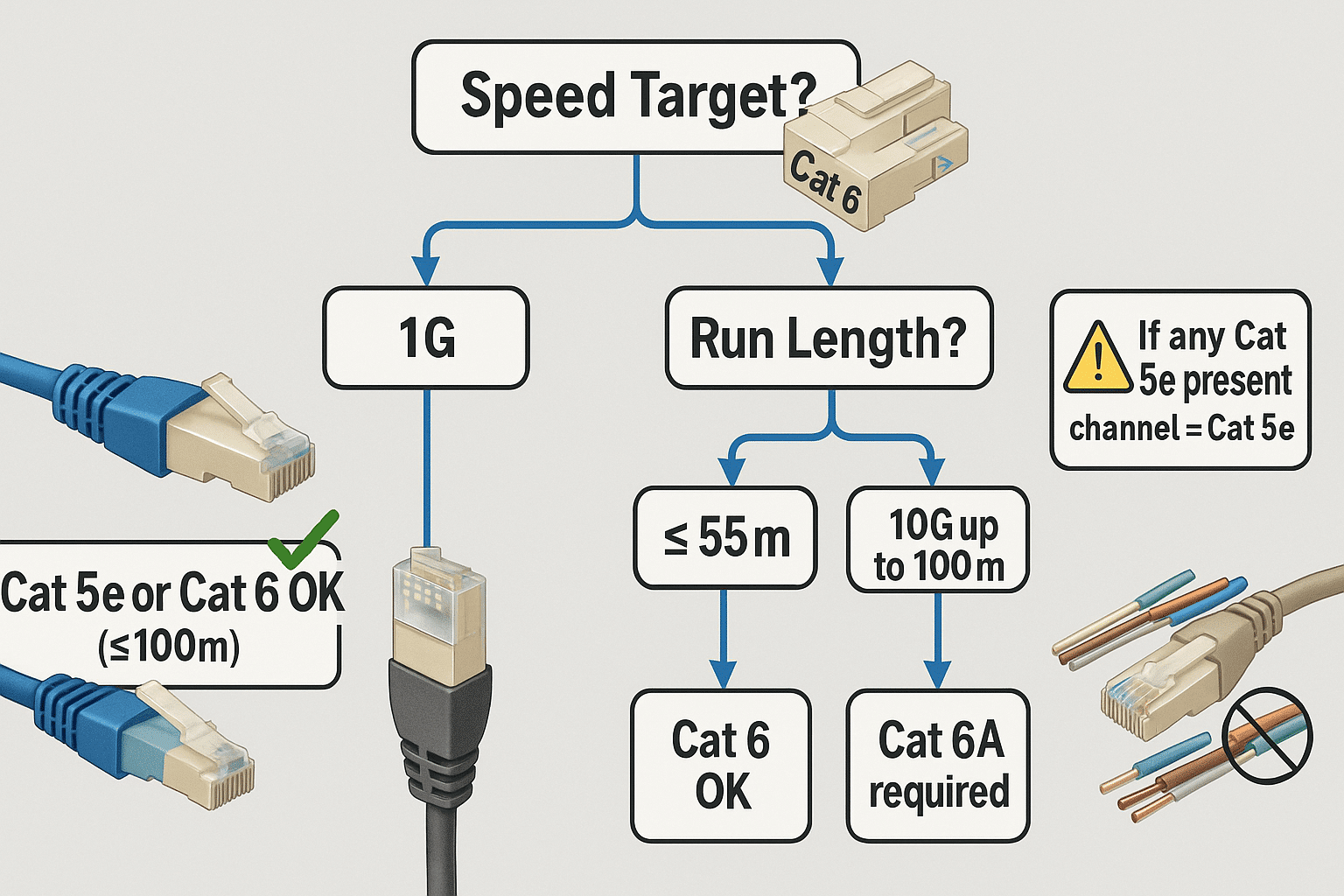

Flowchart showing that Cat 5e supports 1 Gbps at 100m, Cat 6 supports 10 Gbps up to 55m, and Cat 6A supports 10 Gbps up to 100m, with performance always limited to the lowest category in the path.

FAQs

Can I use a Cat 6 cable on Cat 5/5e ports or switches?
Yes. RJ45 is compatible, and the link will come up. The channel rating remains the lowest category present, so you won’t gain performance until every segment is Cat 6 or better.

Will Cat 6 make my Cat 5 network faster?
No. Mixing categories doesn’t raise the channel’s certification or throughput. Replace all Cat 5/5e components with Cat 6/6A—and test—if you want higher, guaranteed performance.

Can I crimp Cat 6 using “Cat 5” plugs?
Avoid it. Mismatches in OD, load-bar size, and solid/stranded support cause intermittent faults. Use Cat 6-rated plugs/keystones that list your cable’s OD and conductor type in the spec.

Does Cat 5 work with Wi-Fi 6 access points?
Yes, if the uplink is 1 Gbps and your Cat 5e channel cert-tests clean. For multigig AP uplinks, move to Cat 6/6A and the appropriate switching.

Conclusion & CTA

Cat 6 and Cat 5/5e play nicely at the RJ45 level, but the lowest-rated component sets performance. If you need more than Cat 5e can reliably deliver, upgrade end-to-end—and certify. Otherwise, mix responsibly with proper connector fit and clean terminations, and you’ll be fine.
