Yes—I’ve used Cat 6 connectors on Cat5e successfully when the plug physically matches the cable: 24-AWG conductors, the right load-bar, and a compatible jacket OD, then terminate to T568A/B. The channel is still rated by its lowest component, so Cat 6 hardware will not “upgrade” a Cat5e link to Cat 6.

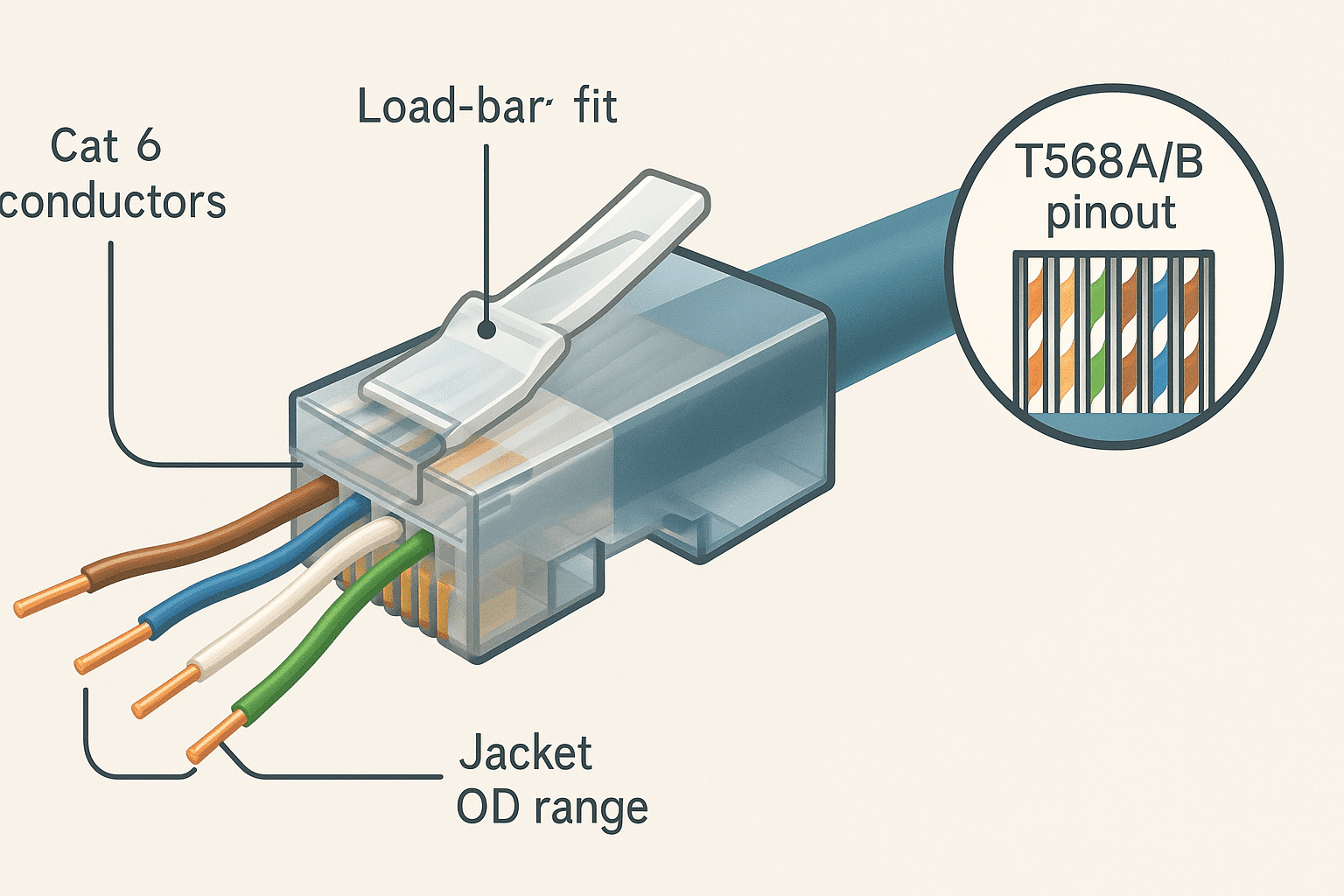

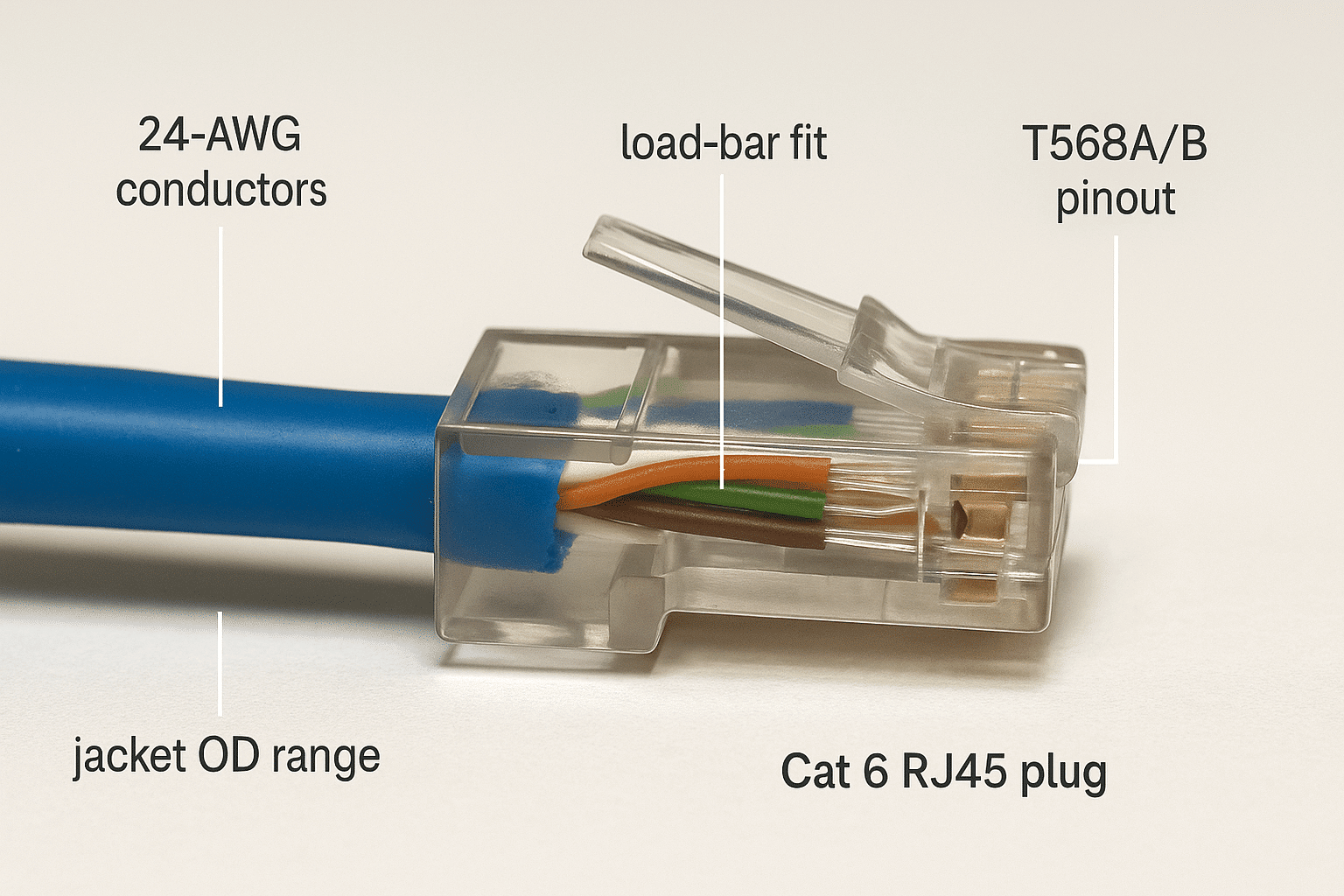

Yes—you can, and I’ve done it many times—if the connector physically matches the cable. That means the plug supports 24-AWG conductors (common on Cat5e), the load-bar seats the pairs cleanly, the jacket OD falls within the plug’s clamp range, and you terminate cleanly to T568A/B. One caveat: the channel rating follows the lowest-rated piece, so a Cat 6 plug on Cat5e stays Cat5e. It’s a practical move for repairs, mixed inventory, or phased upgrades, not a performance “upgrade.”

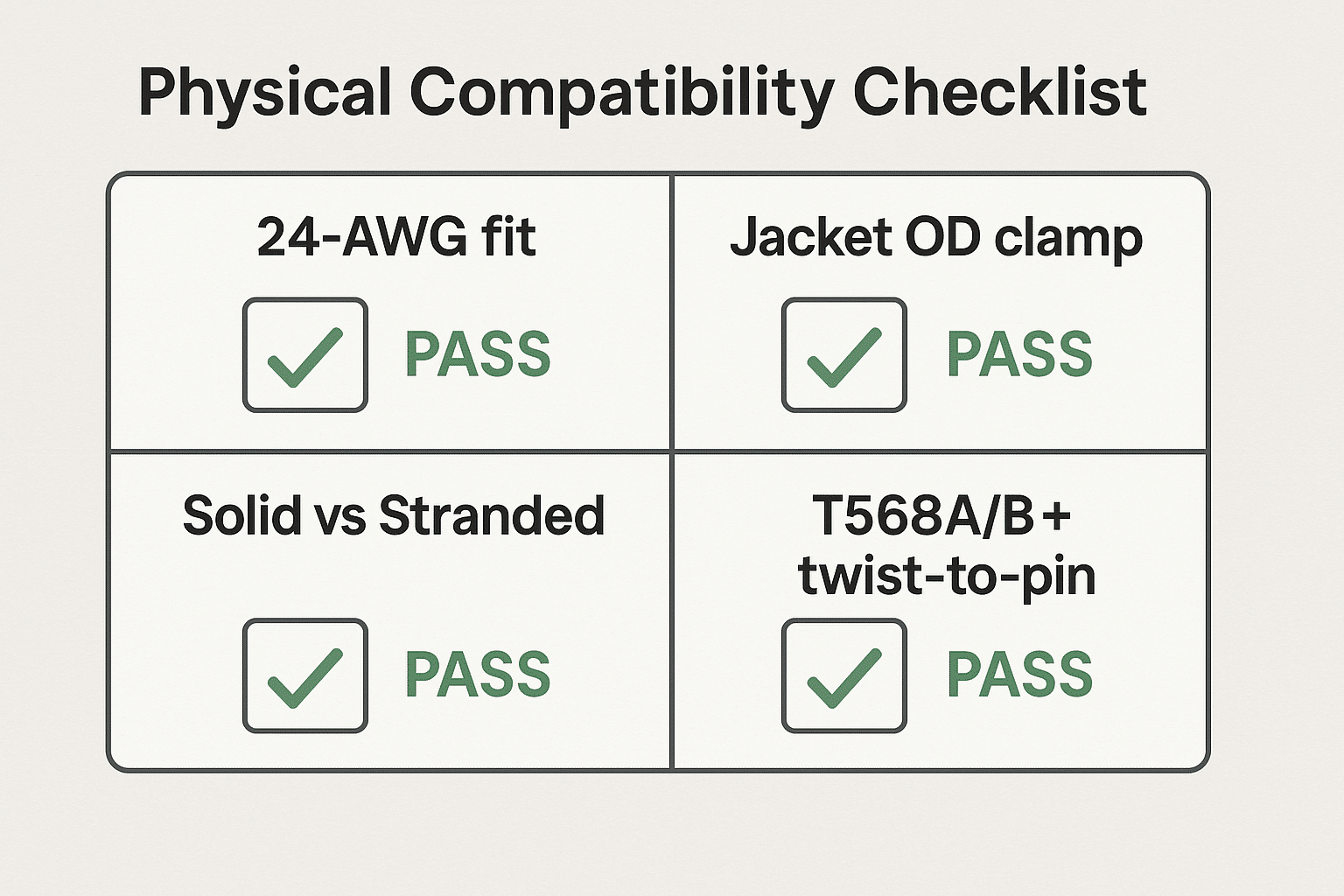

On most jobs, Cat5e comes in 24-AWG conductors. Before I crimp, I always confirm the Cat 6 plug is rated for that gauge and that its load-bar (wire manager) actually seats 24-AWG cleanly—no splay, no loose fit. Mixing a 23-AWG-only plug with 24-AWG Cat5e is a recipe for intermittent links.
I match the plug’s jacket clamp range to the cable’s outer diameter (Cat5e is often ~5.0–6.0 mm). The clamp should grip the jacket—not crush it—and the load-bar must align so the pairs sit straight into the contacts.
I keep solid-core plugs for in-wall runs and stranded plugs for patch leads; the contact tooth style differs. Using the wrong plug type “works” until vibration or movement exposes a weak bite.
I stay consistent on T568A or T568B, keep the twist right up to the pin, and verify pair order before the crimp. Good workmanship beats fancy parts—and it’s what lets a mixed setup perform to spec.
Reminder: Even with a perfect physical match, the channel is rated by its lowest category. A Cat 6 plug on Cat5e will remain Cat5e in performance and certification.

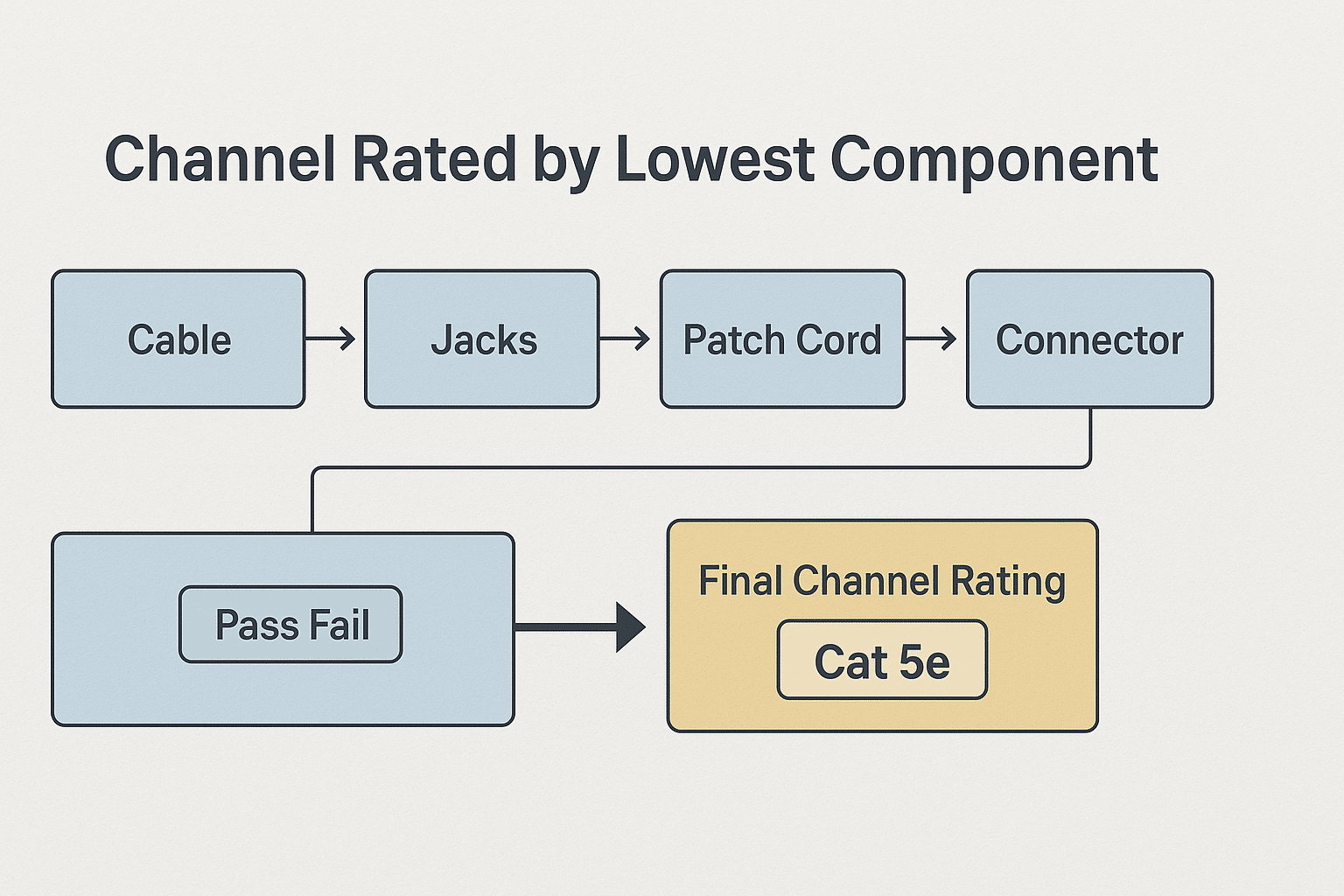

In mixed-category channels, I certify links by the lowest-rated component. A Cat 6 plug on Cat5e cable is perfectly usable if it fits—but the channel still rates as Cat5e. Connectors don’t “upgrade” the link; the ceiling is set by the weakest piece (cable, jacks, patch cords, or plugs).
What counts toward the channel rating
Horizontal cable, patch cords, keystone jacks/patch-panel modules, and the RJ45 plug all participate in the final classification. If any link segment is Cat5e, the whole run is treated as Cat5e—even with Cat 6 hardware elsewhere.
How I verify a mixed channel (quick flow)
Takeaway
Use Cat 6 connectors on Cat5e for convenience or inventory reasons, but set expectations correctly: fit matters, rating doesn’t upgrade.

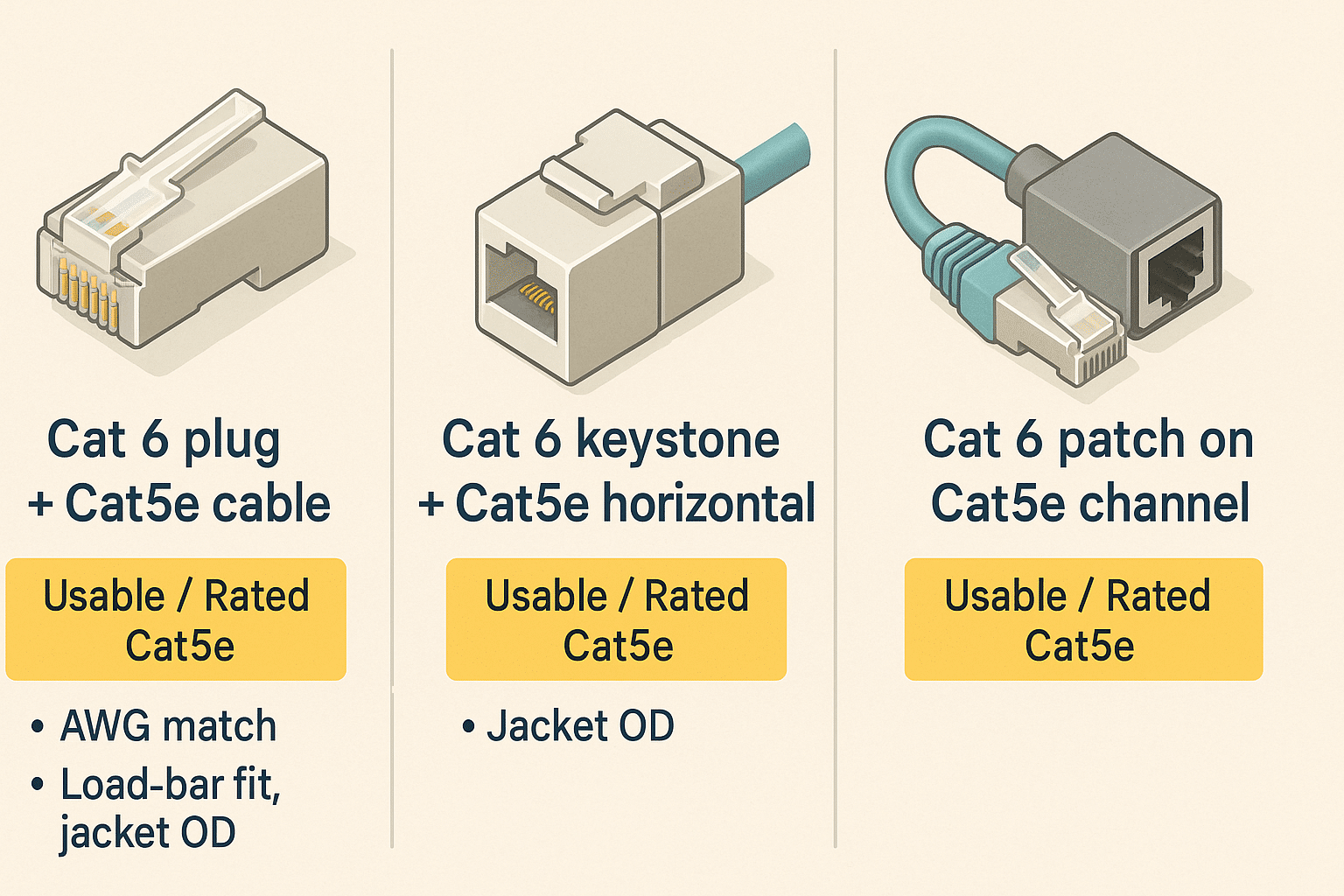

In real projects I often mix parts during repairs or phased upgrades. The rule I follow is simple: if the Cat 6 hardware physically fits the Cat5e cable, it’s usable—but the channel is still rated by the lowest component. So a Cat 6 plug or keystone on a Cat5e run remains a Cat5e channel, even if other pieces are Cat 6.
Bottom line: rating follows the lowest-rated component; mixing Cat 6 with Cat5e doesn’t elevate the channel’s class—fit and workmanship are what keep it stable.

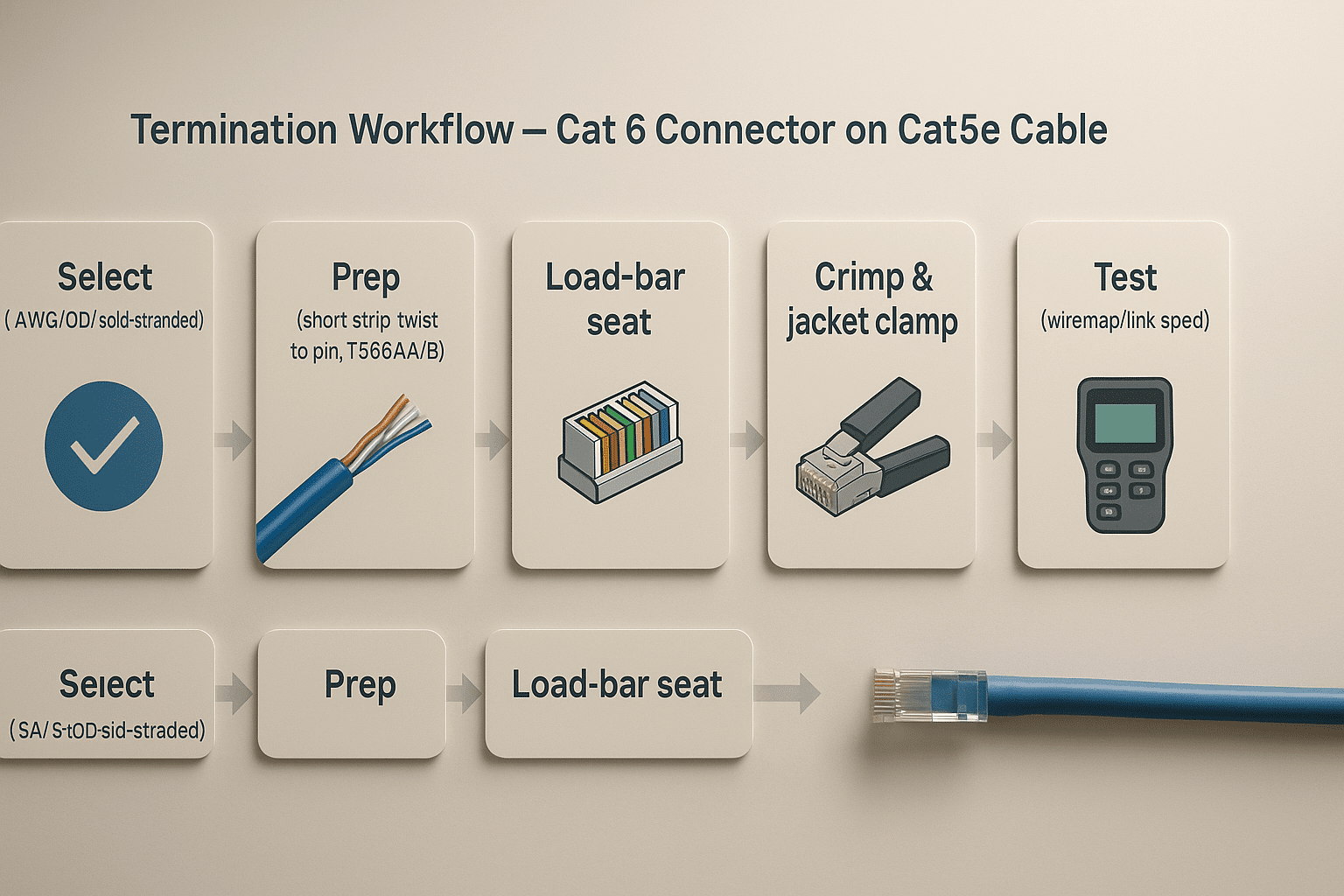

Step 1 — Select the right connector I start by matching the plug to the cable’s construction and size: 24-AWG conductors (typical on Cat5e), the correct solid vs stranded tooth style, a load-bar that seats the pairs cleanly, and a jacket-clamp range that fits the cable’s OD. If any of those don’t line up, intermittent contacts are almost guaranteed.
Step 2 — Prep with twist retention I strip only what I need, keep each pair’s twist right up to the pin, and lay out the pairs for T568A or T568B (consistent on both ends). Maintaining twist and a short untwist length does more for crosstalk than any “magic” plug.
Step 3 — Load-bar and wire seating I seat conductors fully through the load-bar so there’s no splay or crossed pairs, then trim clean. The pairs should enter the contacts straight—no forcing, no skew—so the crimp distributes evenly across all conductors.
Step 4 — Crimp and strain-relief I use a calibrated crimper, verify the jacket clamp grips the jacket (not just the conductors), and respect bend-radius. Over-crimping or crushing the jacket invites micro-fractures and long-term flakiness.
Step 5 — Test and certify the link My quick pass is wiremap → crosstalk/pair-skew sanity (if supported) → link-speed spot test against a known-good switch/NIC. Expectations are set by the lowest-rated component in the chain—so even with Cat 6 hardware, a Cat5e segment keeps the channel at Cat5e.
Is there a difference between Cat 6 and Cat5e connectors? Yes. Cat 6 plugs often use different materials, pin geometry, and load-bar sizing. They’re built for tighter crosstalk control—but they only help if the plug physically matches your cable (AWG, load-bar fit, jacket OD). The channel rating still follows the lowest component.
Will Cat 6 RJ45 plugs work on 24-AWG Cat5e? They can—provided the plug supports 24-AWG and the load-bar actually seats that conductor size cleanly. If you pair a 23-AWG-only plug with 24-AWG Cat5e, expect intermittent contacts and flaky links, especially on patch leads that move. Always confirm plug specs before crimping.
Do Cat 6 connectors improve Cat5e performance? No. Using Cat 6 hardware on Cat5e doesn’t “upgrade” the link. Mixed channels are certified by the lowest-rated piece in the chain (cable, jacks, patch cords, or plugs). If any segment is Cat5e, your channel remains Cat5e, even with Cat 6 components elsewhere.
Can I mix Cat 6 keystone jacks with Cat5e runs? Yes—this is common in phased upgrades. The link will function if the terminations are sound, but the final channel classification stays at Cat5e because the cable sets the ceiling. Plan for a full recable when you actually need Cat 6 performance end-to-end.
In my rollouts, Cat 6 connectors on Cat5e are a practical fix—when the fit is right—but they don’t change the channel’s rating. If you’re chasing cleaner gigabit margins or future Cat 6 performance, plan the recable and certify the result; workmanship beats catalog specs every time.
