How to Crimp a Cat 5 (Cat5e) Ethernet Cable

I strip about 25 mm of jacket, keep each pair twisted tight, and sort the colors to T568B (or T568A) in my hand. I insert fully into a plug matched to solid or stranded, then ratchet-crimp until the tool releases. The clamp must bite the jacket, not the conductors. I finish with a wiremap/continuity check.

Tools & Materials Checklist

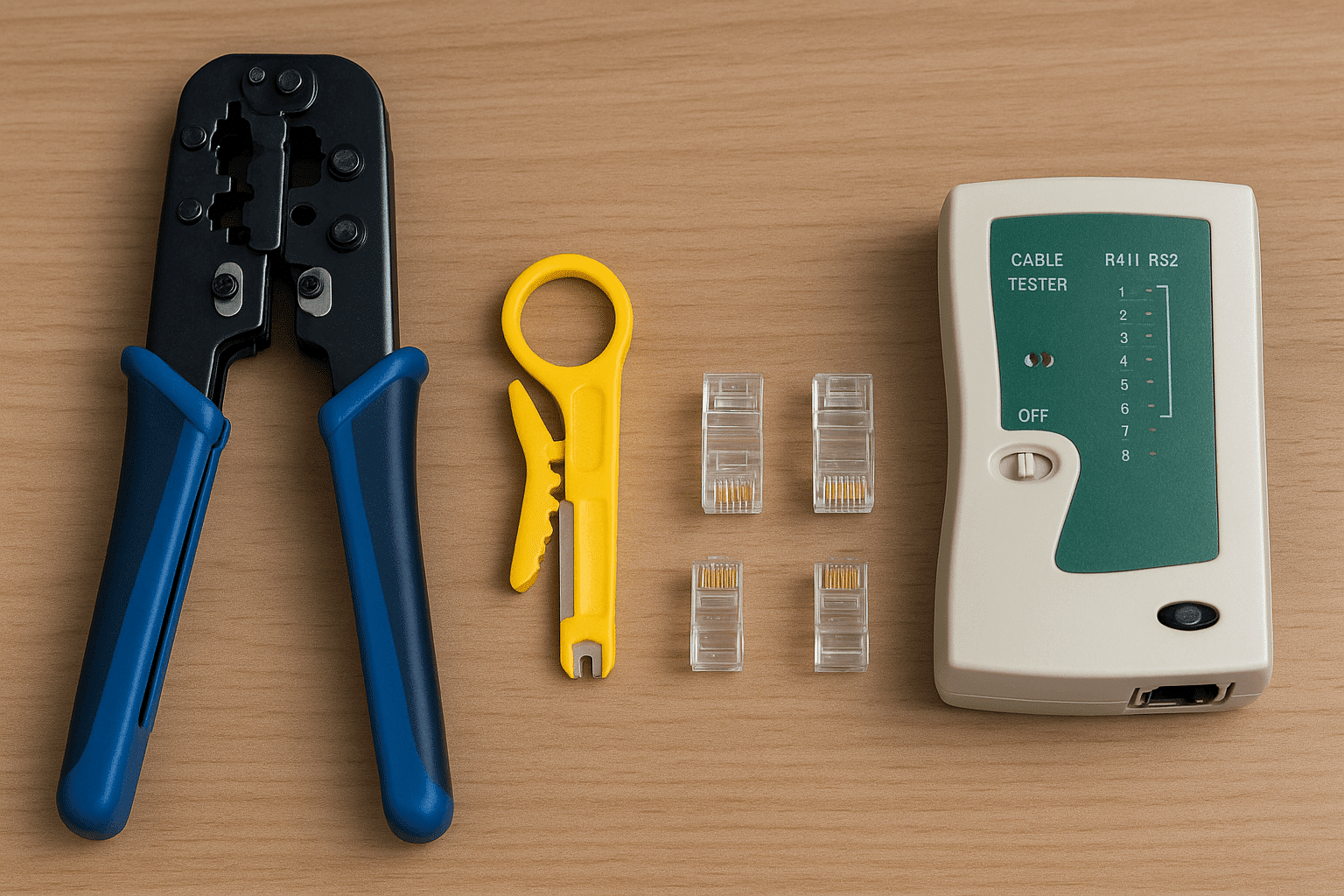

From my bench kit: a ratcheting crimper, a jacket stripper, flush cutters, and a tester that does at least wiremap. I stock standard RJ45 plugs and pass-through plugs—both in versions that match solid and stranded conductors—so I’m never forcing the wrong tooth style.

Tools Table — Basic vs Pro Kit

Kit	What’s in it	Why I pick it
Basic	Ratcheting crimper, stripper, standard RJ45, tester	Solid results at low cost
Pro	Add pass-through RJ45, flush cutters, spare keystones	Faster routing and easier QC

T568A vs T568B: Color Order & When to Use

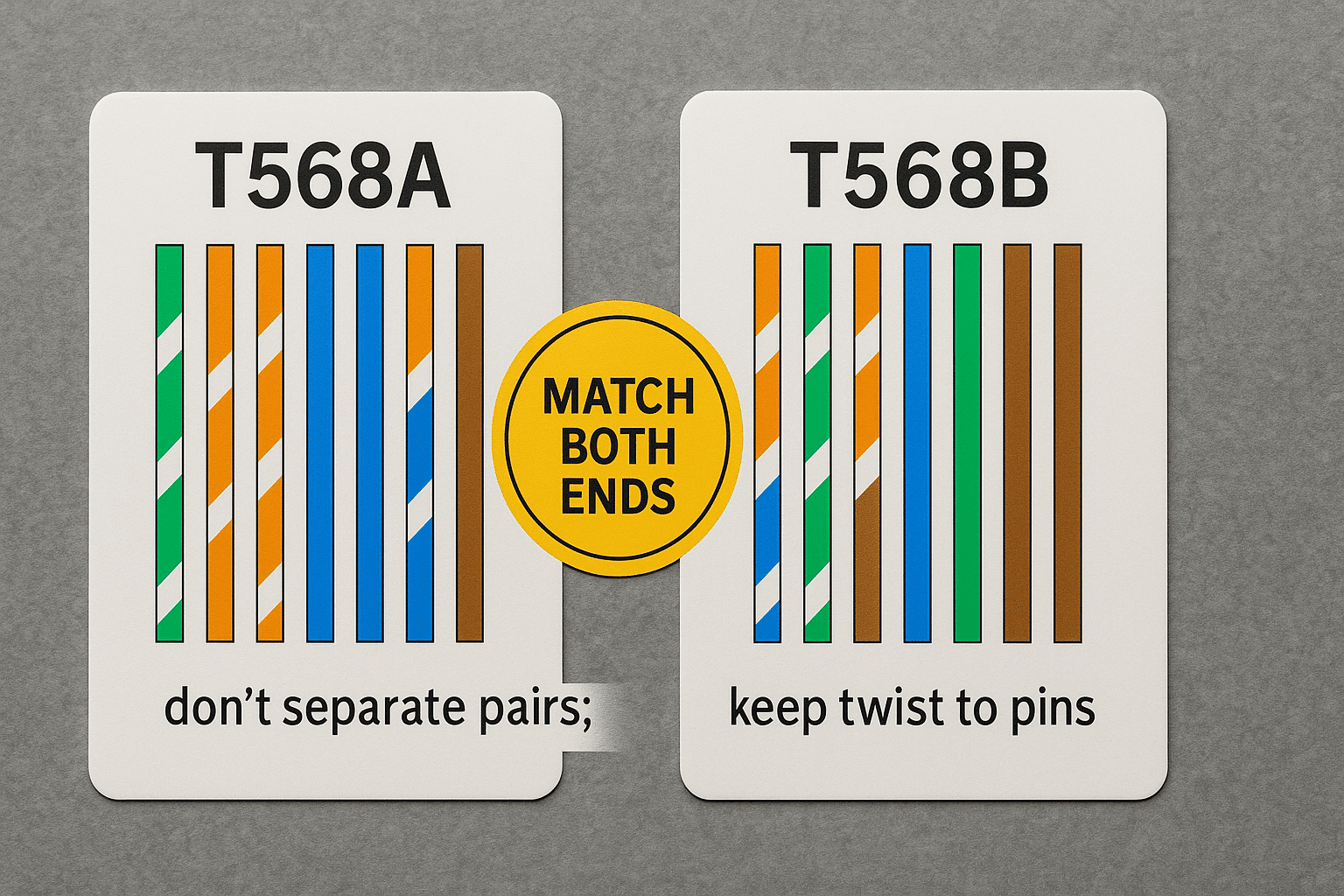

I’m comfortable with either scheme—as long as both ends match. Most of my SOHO jobs default to T568B unless a site standard or legacy gear calls for T568A. What I never do: separate pairs just to “match colors.” Keep the twist right to the pins to control crosstalk.

Pass-Through vs Standard RJ45 Connectors

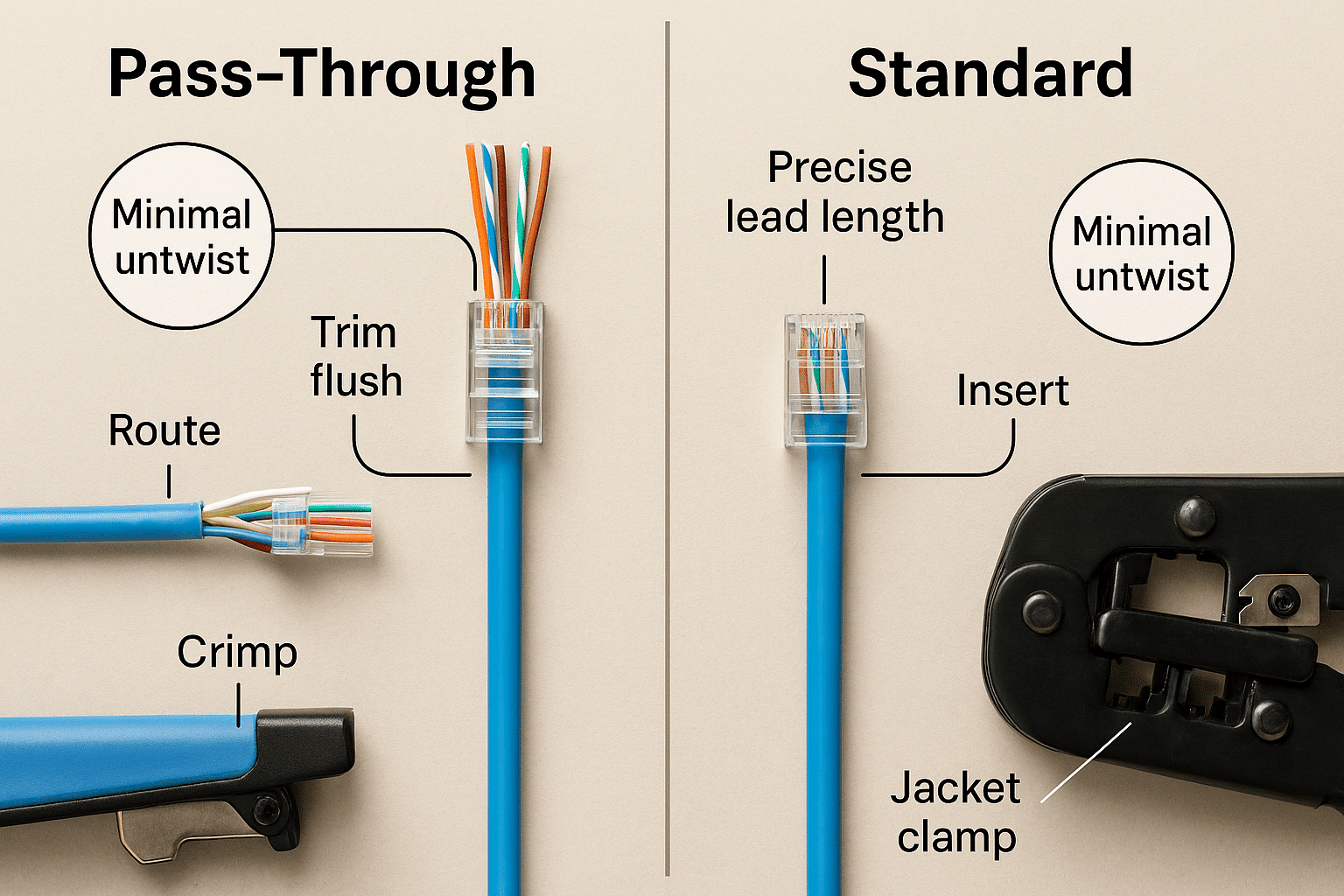

When I’m training new techs, pass-through plugs reduce rework—route the conductors through, trim flush, then crimp. On standard plugs, lead length is fussier; measure twice so every conductor seats fully before the crimp. Either way, keep untwist minimal and make sure the jacket is inside the clamp.

Solid vs Stranded: Pick the Right Plug

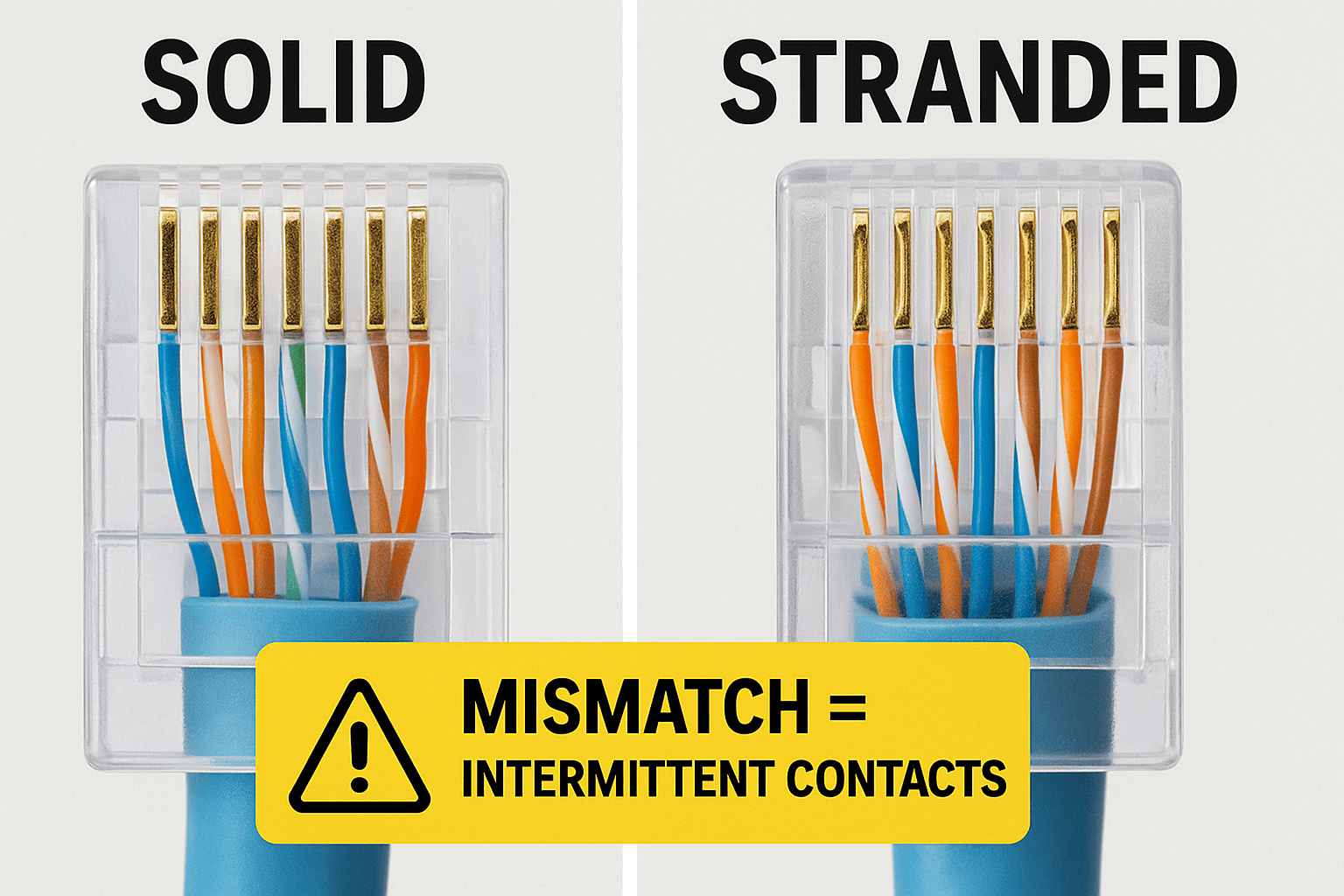

Horizontal runs are solid; patch leads are stranded. I keep both plug types on hand because the tooth geometry is different. If you crimp a stranded lead with a solid-only plug, it may “work” today and go flaky next week. Match plug to conductor type, then confirm with a quick wiremap.

Step-by-Step Crimping S.O.P.

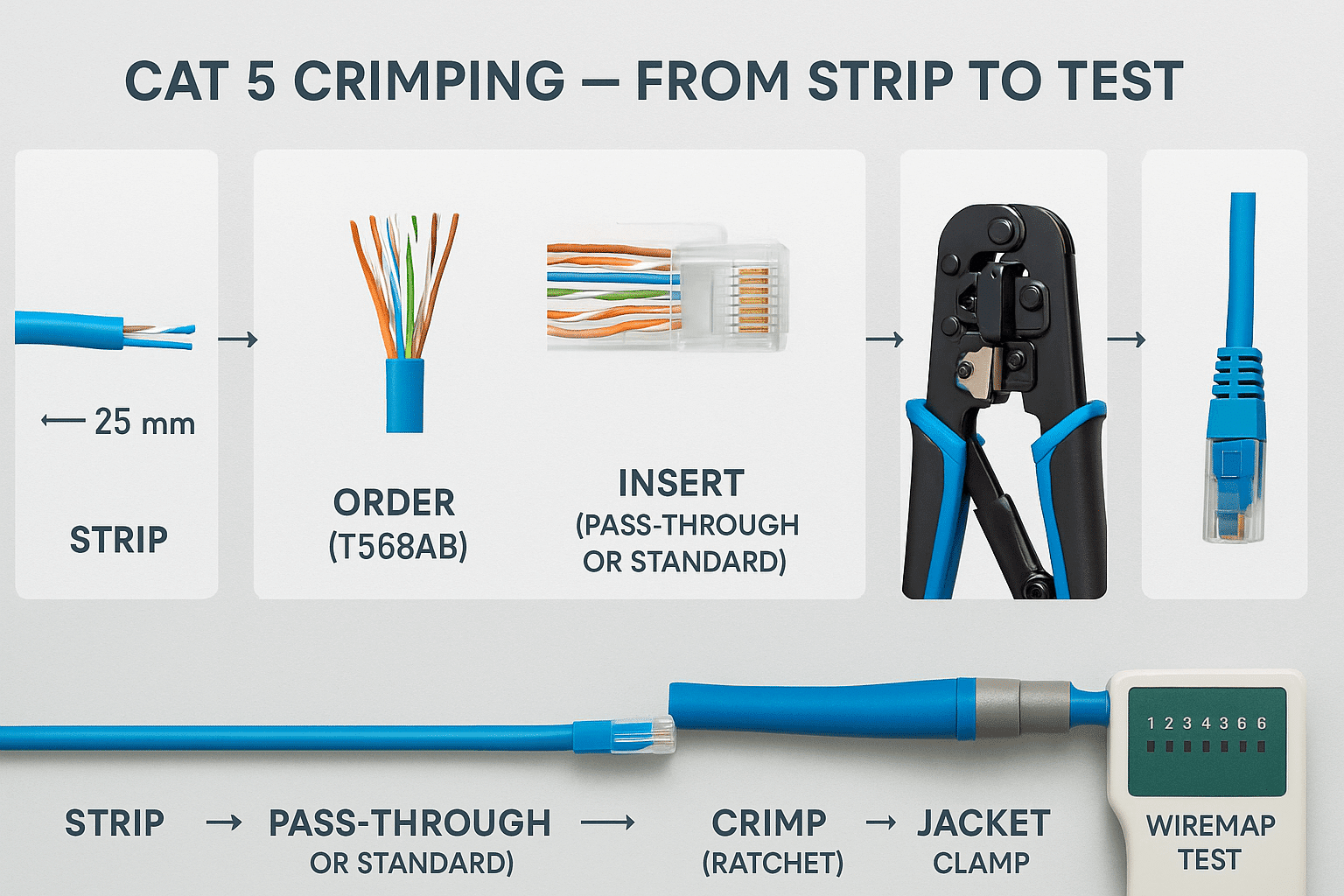

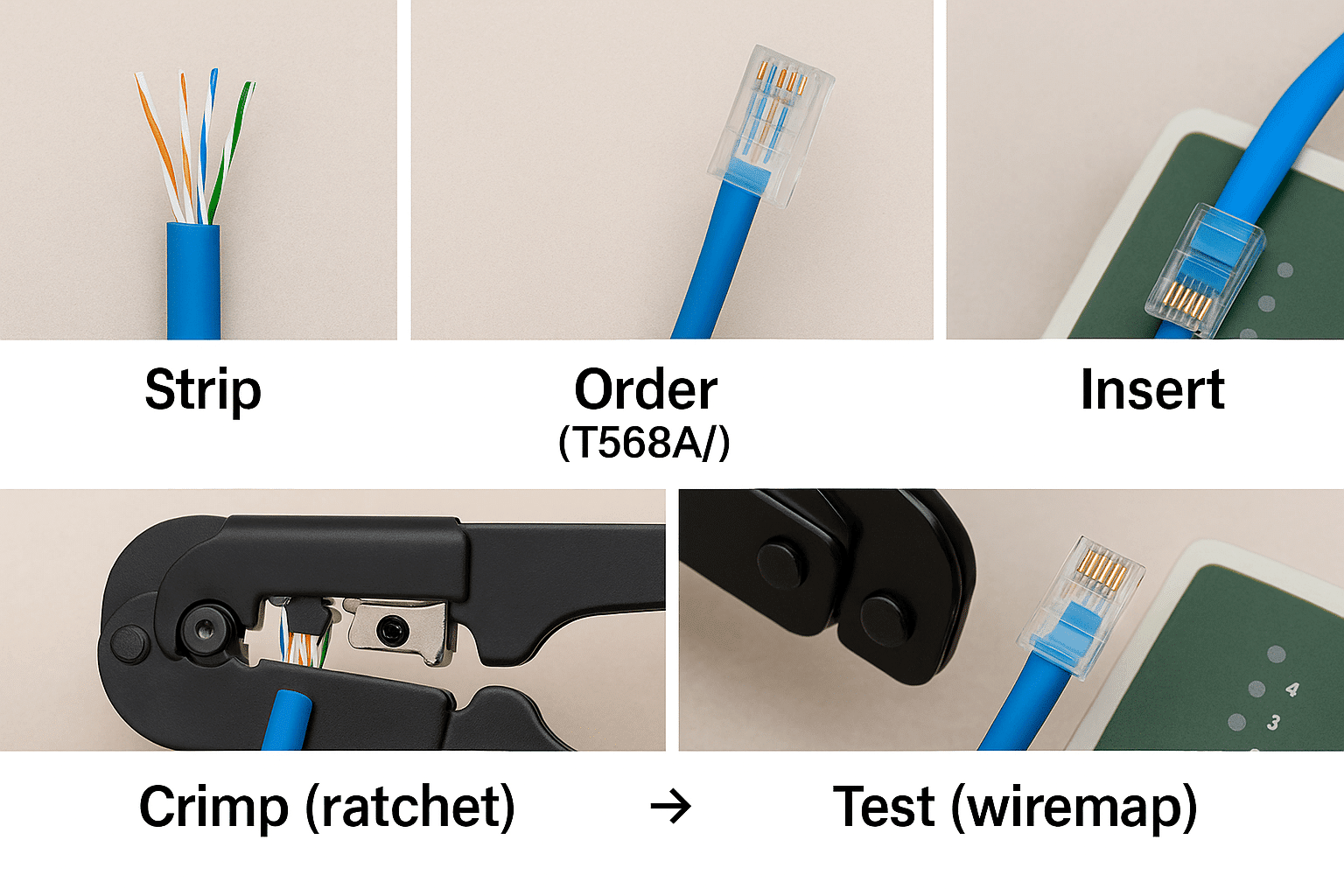

1. Strip ~25 mm of jacket
   I score and peel just enough sheath to work comfortably. I don’t nick conductors, and I keep each twisted pair intact as long as possible—this preserves crosstalk performance.
2. Sort to T568A or T568B
   I fan the conductors in my palm and line them up to the chosen scheme. Consistency matters more than which scheme you pick—both ends must match, and I never separate pairs just to “make colors look pretty.”
3. Minimal untwist, insert fully
   With standard plugs I trim leads to the correct length and push them all the way to the pin face; with pass-through plugs I feed through, trim flush, then crimp. Either way, the jacket must enter the plug so the clamp can bite it.
4. Crimp to ratchet release
   A ratcheting crimper gives me repeatable pressure. I verify teeth have bitten evenly across all conductors and that the strain-relief is gripping the jacket, not copper.
5. Wiremap → quick link test
   I run a basic wiremap/continuity check first; if it passes, I do a quick link-speed spot test. Any jitter or down-negotiation? I re-terminate before chasing firmware or switch settings.

Quality Checks & Common Mistakes

My fast QC list

• Full insertion to the pin face; no staggered lengths.

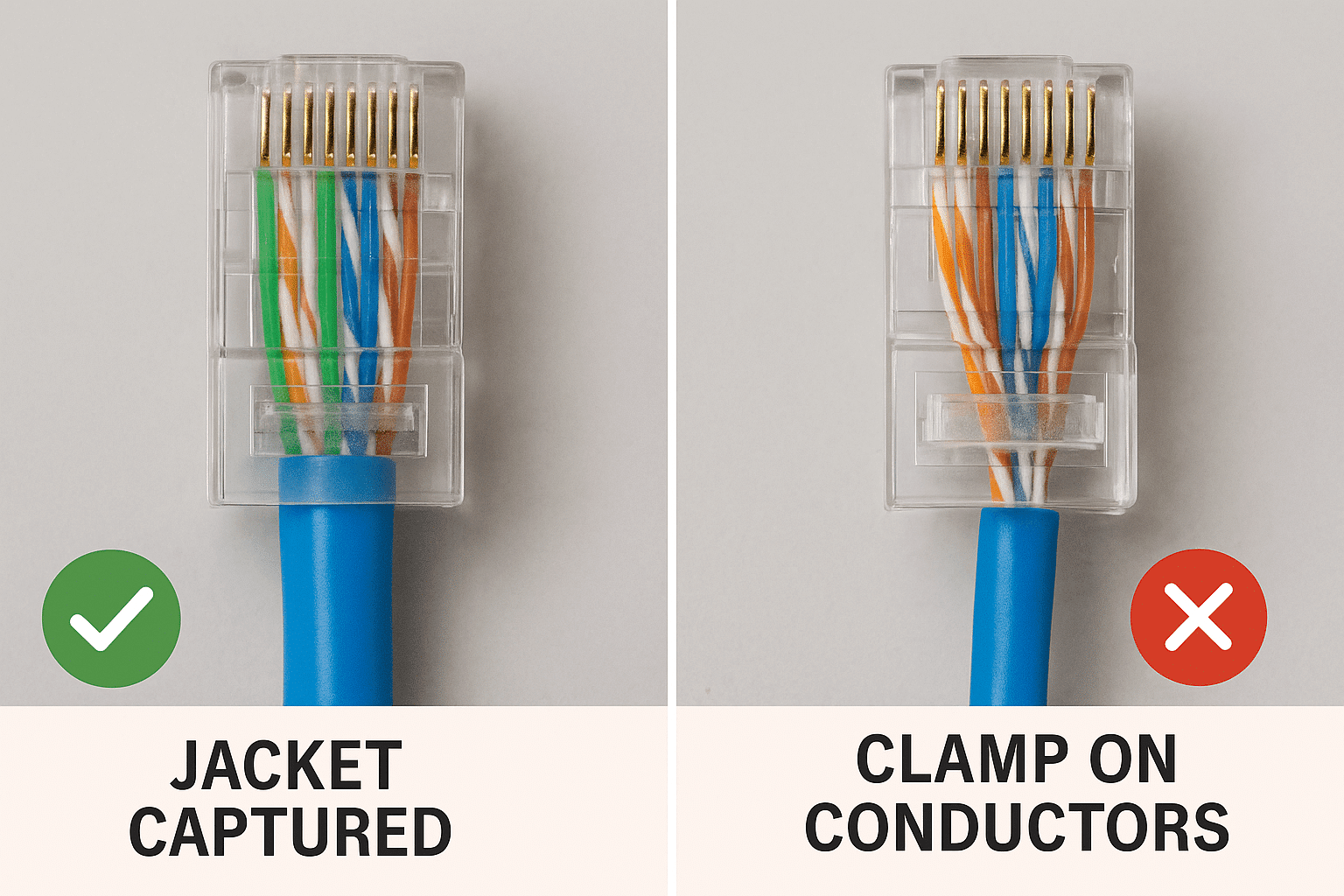

• Jacket inside the clamp; clamp never on bare conductors.
• Minimal untwist; pairs remain tight right up to the pins.
• Gentle bend radius leaving the plug; no sharp kinks.

Mistakes I see (and fix)

• Split pairs / wrong order → Re-terminate, follow T568A/B exactly.
• Over-untwisted pairs → Strip less; keep twist to the pin.
• Clamp on conductors → Re-crimp with jacket properly captured.
• Wrong plug for conductor type (solid vs stranded) → Match the plug’s tooth geometry to the cable, then retest.

Troubleshooting Matrix

Symptom	Likely cause	Fix I use
Only negotiates 100M	Split pair / long untwist	Re-terminate; keep twist to the pin
Link drops / jitter	Clamp on conductors / plug mismatch	Re-crimp with jacket captured; match plug to solid/stranded
Fails wiremap	Mis-order / shallow insert	Reorder to T568A/B and fully insert

Testing & Troubleshooting

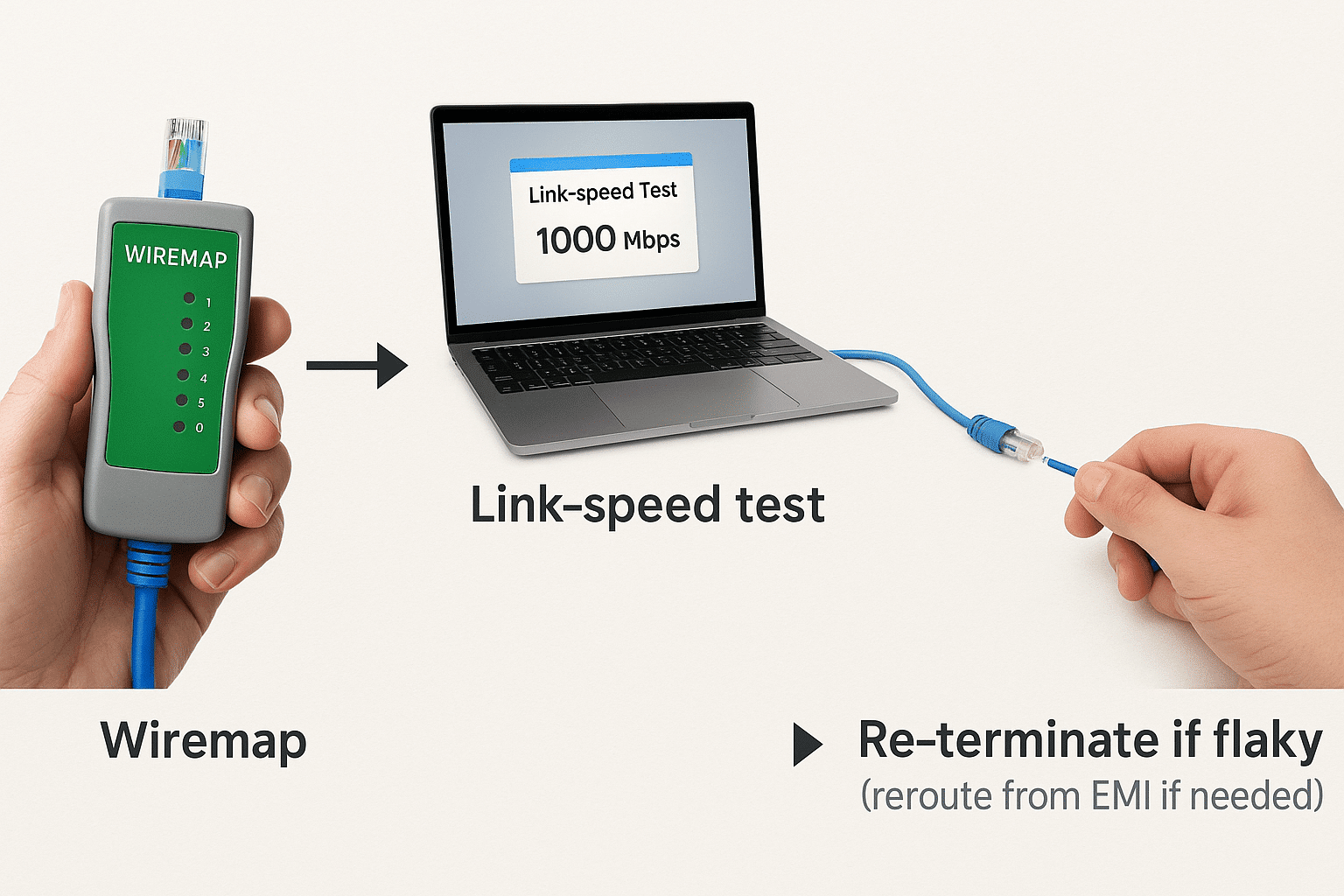

I never ship a hand-made cable without a wiremap. That catches the silent killers—opens, shorts, split pairs, or a conductor that didn’t seat. Then I do a quick link-speed spot test against a known-good switch/NIC. If it jitters or down-negotiates, I re-terminate first, then swap patch cords and route away from EMI. Craft fixes more “mystery slowdowns” than firmware ever will.

FAQs

How do I crimp Cat 5 step by step?
Strip about 25 mm, sort to T568A/B, keep untwist minimal, insert fully (pass-through trims flush, standard needs precise length), crimp with a ratcheting tool until it releases, confirm the clamp grabs the jacket, then wiremap and quick link-test. If anything’s off, re-terminate.

Which should I use—T568A or T568B?
I default to T568B unless a site standard requires T568A. What matters most is that both ends match and you never split pairs just to line up colors. Keep the twist right to the pins for best results.

Do I need pass-through connectors?
Not strictly. Pass-through makes lead management easier for new hands; standard plugs are cheaper and ubiquitous but are pickier about lead length. In both cases, minimal untwist and a proper jacket clamp are non-negotiable.

Can I crimp without a tester?
You can, but I don’t. A simple wiremap tool pays for itself the first time it flags a split pair or shallow insert. Skipping tests is how “it lights up” turns into a slow, flaky link later.

Why does my cable light up but run slow?
That’s classic split pair or over-untwist. It negotiates a link, then crosstalk kills throughput. Re-terminate: keep twist to the pin, capture the jacket with the clamp, and confirm the color order on a wiremap.

Conclusion & CTA

Crimping Cat 5 isn’t magic—it’s discipline. Keep twist-to-pin, clamp the jacket, match solid/stranded plugs, and test every run. Do that, and your cables link fast and stay that way; skip it, and you’ll be chasing ghosts.
